| ₹ 4934.73 includes GST and import duties. | |
| B2B customers can avail ₹ 752.55 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

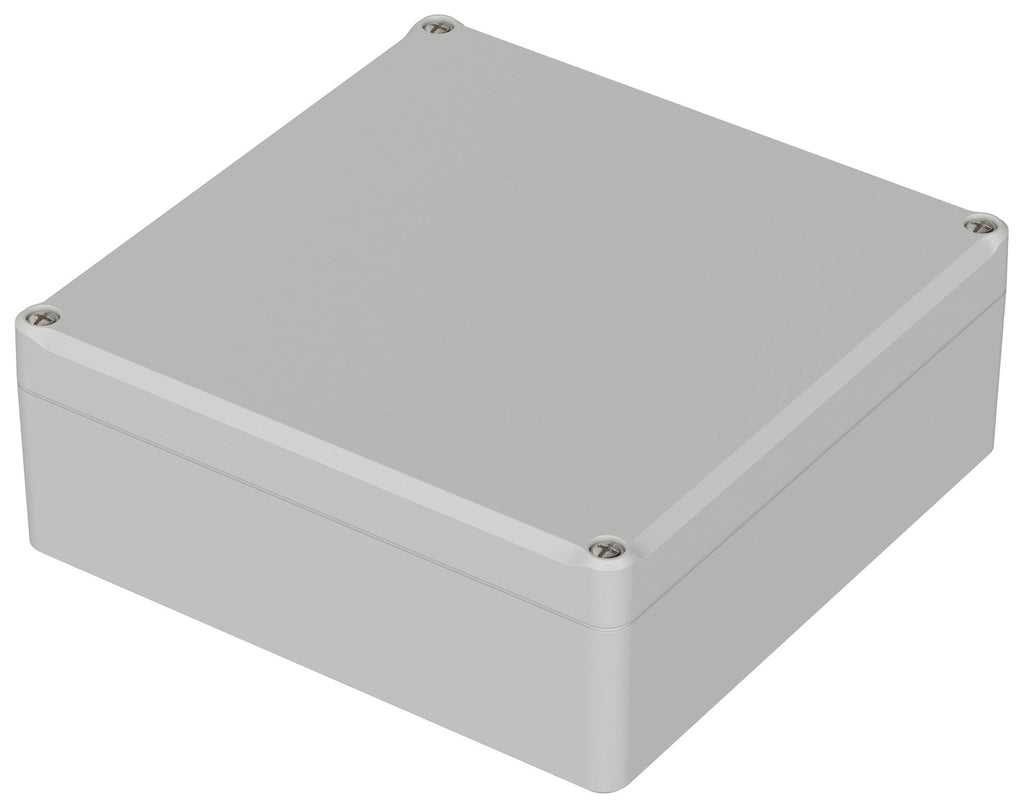

63218300 is an Euromas II series, visually appealing electronics enclosure made of ABS with easy-to-install screw connection technology.
- Light grey, similar to RAL 7035 (single coloured)
- IP65 IP rating and 3 NEMA rating
- Dimension (H x W x D) is 57mm x 150mm x 150mm
- Particularly recycling-friendly due to the use of pure plastics without injected metal parts
- Enclosure can be mounted on the wall without additional processing
- Fixing domes for PCBs and mounting plates are not only provided in the lower part, but also in lid
- Offset cams for clamping rectangular PCBs
- Material ABS, seal CR
- Temperature resistance: -30°C to 70°C
- Vertical mounting of the PCBs is also possible by means of lateral insertion grooves
Contents
Lid and base, Self-tapping coarse-pitch thread lid screws made of V2A.
Product details
| Enclosure Type | Electronic |
| External Height - Metric | 57mm |
| External Depth - Metric | 150mm |
| Body Colour | Light Grey |
| External Height - Imperial | 2.24" |
| External Depth - Imperial | 5.91" |
| SVHC | No SVHC (27-Jun-2024) |
| Enclosure Material | ABS |
| External Width - Metric | 150mm |
| IP Rating | IP65 |
| NEMA Rating | NEMA 3 |
| External Width - Imperial | 5.91" |
| Product Range | Euromas II Series |
Other details
| Brand | BOPLA |
| Part Number | 63218300 |
| Quantity | Each |
| CAD Altium_Designer (41.46KB) EN | View or download |
| Drawing (90.46KB) EN | View or download |
| CAD Multiple Formats (311.67KB) EN | View or download |
| Technical Data Sheet (77.00B) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 4836.04 |
| 3-5 | ₹ 4786.69 |
| 5-10 | ₹ 4687.99 |
| 10+ | ₹ 4589.3 |
Bulk discount will be automatically applied during checkout based on quantity.
