Product Overview

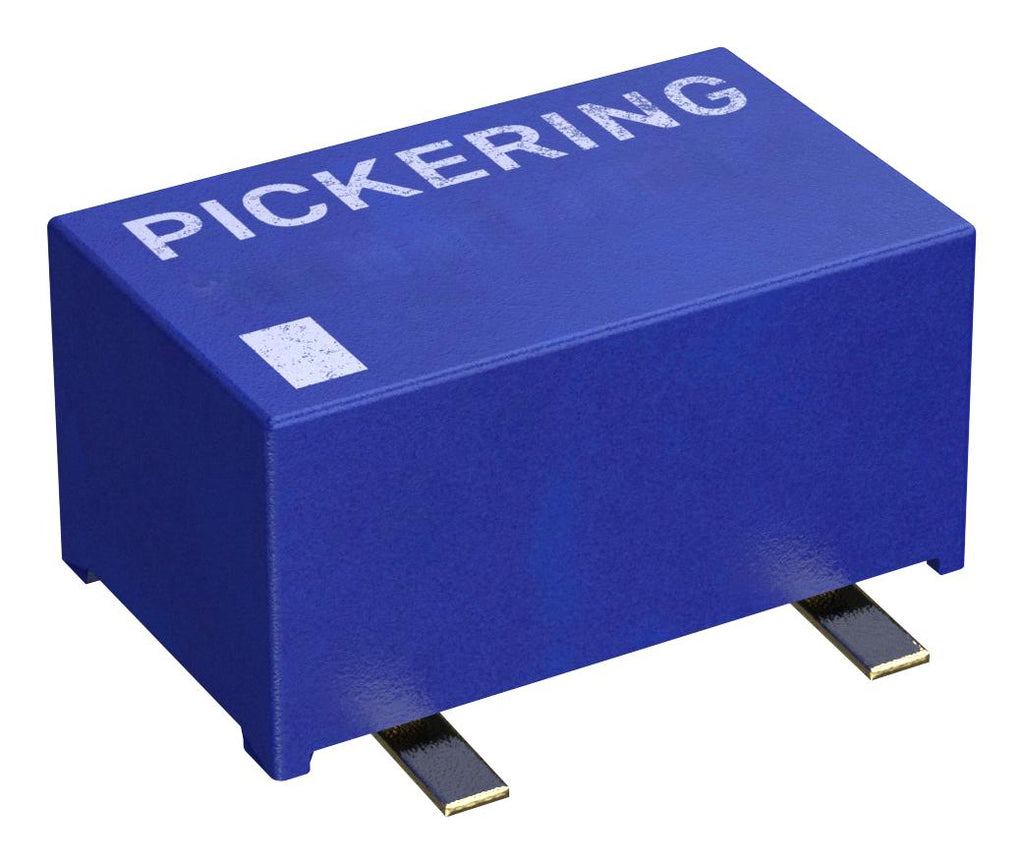

219-2-A-12/1D is a 219 series high voltage surface mount (SMD) reed relay designed for compact, high-channel-count test systems. It is ideal for mixed-signal semiconductor testing, medical electronic equipment testing, EV charge point testing, monitoring photovoltaic efficiency, in-circuit test equipment, and High Voltage instrumentation. The range supports high voltage switching (up to 1kV) with Up to 3kV stand-off across the switch and up to 5kV stand-off between switch and coil, helping maintain isolation in dense layouts. With low leakage performance (insulation resistance greater than 10¹² ohm) and internal magnetic screening to support high density / ultra high density packing, series 219 is a strong choice for high-voltage switching matrices and multiplexers in space-constrained ATE designs. Typical applications include test & measurement, medical, automotive, semiconductor testing, mining, oil & gas and cable testing.
- High voltage up to 3kV
- 12V coil voltage
- 10⁸ typ life expectancy operations
- 0.5ms max operate time including bounce, 0.2ms release time
- Coil resistance is 400 ohm
- Power rating is 10W, maximum switch current is 0.7A
- 100% inspection at every stage of manufacturing
- Internal mu-metal screen
- Operating temperature range from -40 to +105°C
Product details
| Contact Configuration |
DPST-NO |
| Product Range |
219 Series |
| Coil Resistance |
400ohm |
| Switching Voltage Max |
1kV |
| Coil Voltage |
12VDC |
| Relay Mounting |
Surface Mount |
| Switching Current Max |
700mA |
| SVHC |
Lead (21-Jan-2025) |
Other details
| Brand |
PICKERING |
| Part Number |
219-2-A-12/1D |
| Quantity |
Each |
| Technical Data Sheet (1.11MB) EN |
View or download |
