Product Overview
Notes
This product comes with 5-year warranty.
Product details
| Pressure Type |
Gauge |
| Operating Pressure Min |
-1bar |
| Pressure Port Size |
G1/2A |
| Supply Voltage Min |
10VDC |
| Media Type |
Dust, Gas, Liquid, Vapor |
| Sensor Output Type |
Analogue - 4mA to 20mA |
| Operating Temperature Min |
-40°C |
| Product Range |

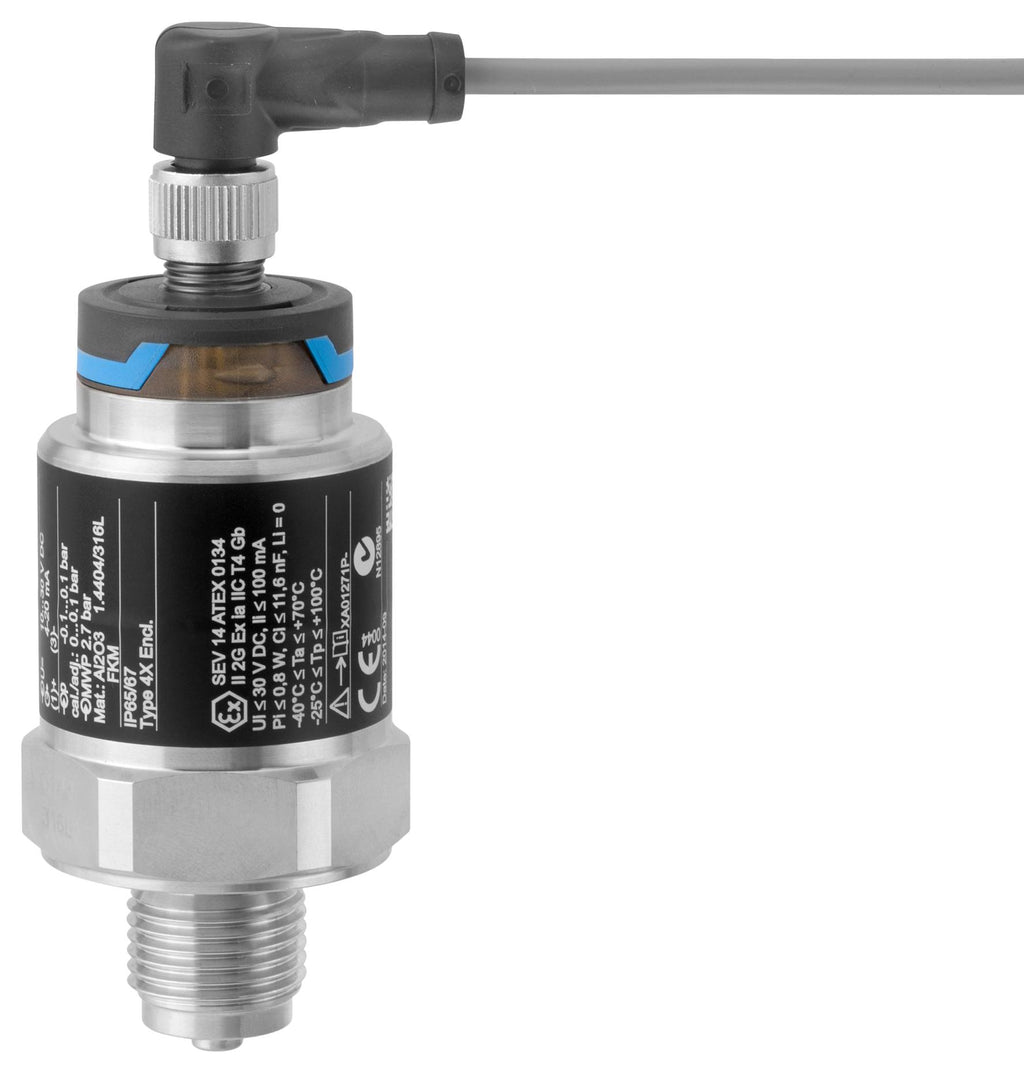

Cerabar PMC21 Series |
| Pressure Port Type |
BSPP |
| Operating Pressure Max |
10bar |
| Transducer Connection / Termination |
4 Pin M12 Connector |
| Supply Voltage Max |
30VDC |
| Output Interface |
- |
| Housing Material |
316L Stainless Steel |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (27-Jun-2024) |
