Description
Product Overview

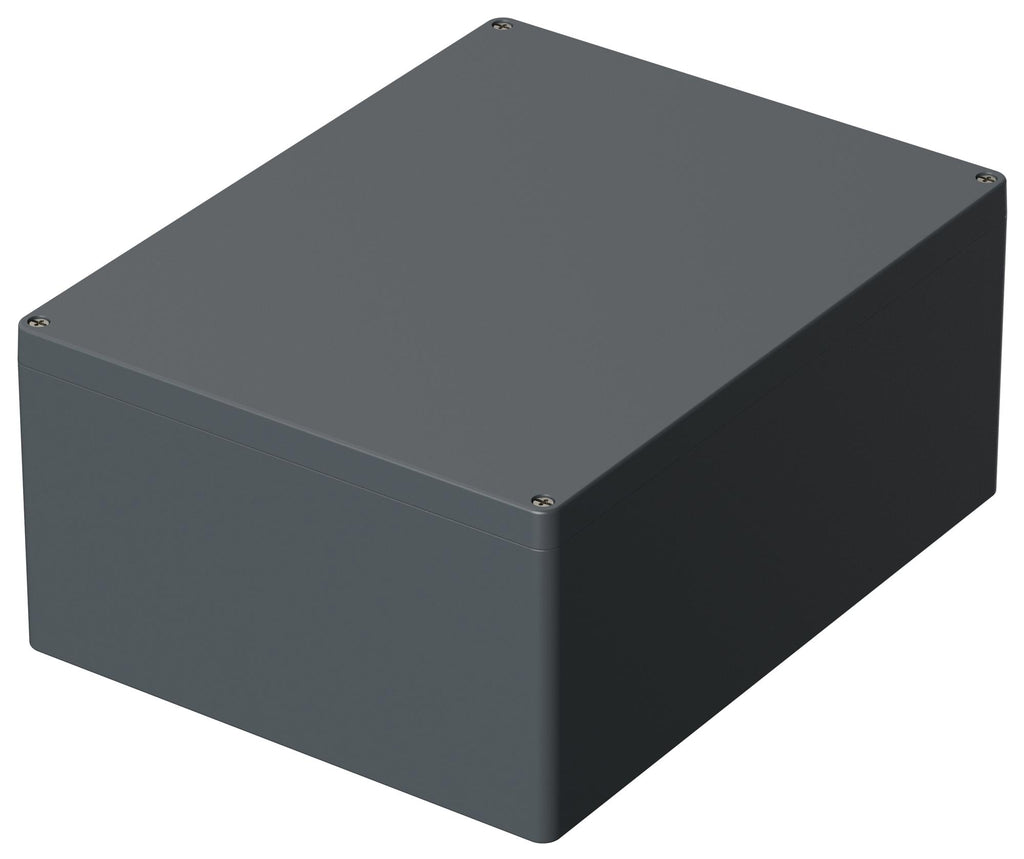

01185000 is an Euromas Alu enclosure. Euromas Alu is an especially robust, classic industrial enclosure in cast aluminium.
- Foamed-in seal ensures a high degree of protection
- PCBs and mounting rails can be mounted via pre-cut threads in the lower part
- Protection class IP66 to DIN EN 60529, NEMA 3 rating
- Impact resistance IK 09 to IEC 62262 (A 100: IK 08)
- The materials comply with requirement set R1 or R7 to DIN EN 45545-2 of hazard level HL3
- Listing under UL file no. E 196 706
- Temperature resistance: -40°C to 90°C
- Material G Al Si 12, seal PU foamed
- Colour silver grey similar to RAL7001
- 181mm x 310mm x 400mm (height x width x depth) enclosure size
Contents
Lid and base, Lid screws (V2A), 4 screws for installation/earthing.
Product details
| Enclosure Type | Instrument |
| External Height - Metric | 310mm |
| External Depth - Metric | 181mm |
| Body Colour | Grey |
| External Height - Imperial | 12.2" |
| External Depth - Imperial | 7.13" |
| SVHC | No SVHC (27-Jun-2024) |
| Enclosure Material | Aluminium Alloy |
| External Width - Metric | 400mm |
| IP Rating | IP66 |
| NEMA Rating | NEMA 3 |
| External Width - Imperial | 15.75" |
| Product Range | Euromas ALU Series |
| Configurable | Yes |
Other details
| Brand | BOPLA |
| Part Number | 01185000 |
| Quantity | Each |
| Drawing (89.31KB) EN | View or download |
| CAD Altium_Designer (26.16KB) EN | View or download |
| CAD Multiple Formats (90.61KB) EN | View or download |
