Description
Product Overview

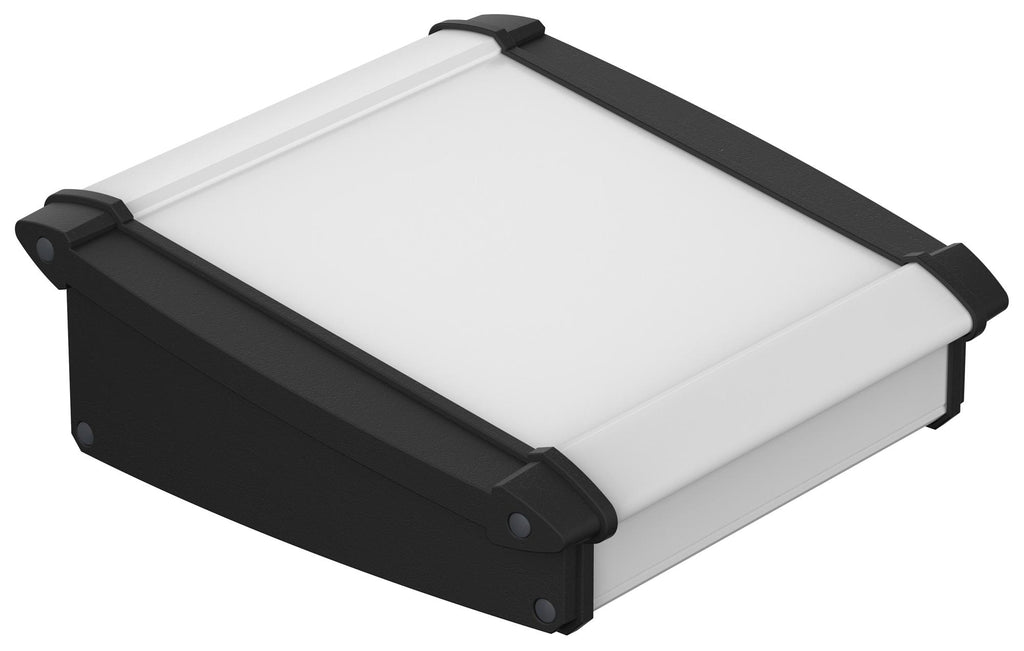

92865150.HMT1 is an ATPH 1865-0150 ALU-TOPLINE_SET horizontally divided profile enclosure for use as a desktop or wall-mounted enclosure.
- Alu-Topline has a lowered surface for mounting keyboards or operating elements such as hand switches
- Profile has various slots as well as alternatively usable screw channels for mounting PCBs
- Additional smooth surfaces for mounting interfaces such as USB or D-Sub connectors
- Dimensions are matched to typical touch/display sizes. ATPH 18.. = 7.0"
- Invisible wall mounting as accessory
- Temperature range from -25°C to 70°C
- Made of aluminium / ABS material
- Aluminium/black colour
- IP54 and NEMA 3 rated
- Dimension is 68.2mm x 150mm x 181.2mm (H x W x D)
Contents
2-piece enclosure profile, 2 x covers, 8 x screws, 8 x screw covers.
Product details
| Enclosure Type | Instrument |
| External Height - Metric | 68.2mm |
| External Depth - Metric | 150mm |
| Body Colour | Natural |
| External Height - Imperial | 2.69" |
| External Depth - Imperial | 5.91" |
| SVHC | No SVHC (27-Jun-2024) |
| Enclosure Material | Aluminium Alloy |
| External Width - Metric | 181.2mm |
| IP Rating | IP40, IP54 |
| NEMA Rating | NEMA 3 |
| External Width - Imperial | 7.13" |
| Product Range | ALU-TOPLINE Series |
| Configurable | Yes |
Other details
| Brand | BOPLA |
| Part Number | 92865150.HMT1 |
| Quantity | Each |
| Manufacturer Catalogue (720.23KB) EN | View or download |
| CAD Multiple Formats (567.25KB) EN | View or download |
| CAD Altium_Designer (273.51KB) EN | View or download |
| Drawing (115.31KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
