Description
Product Overview

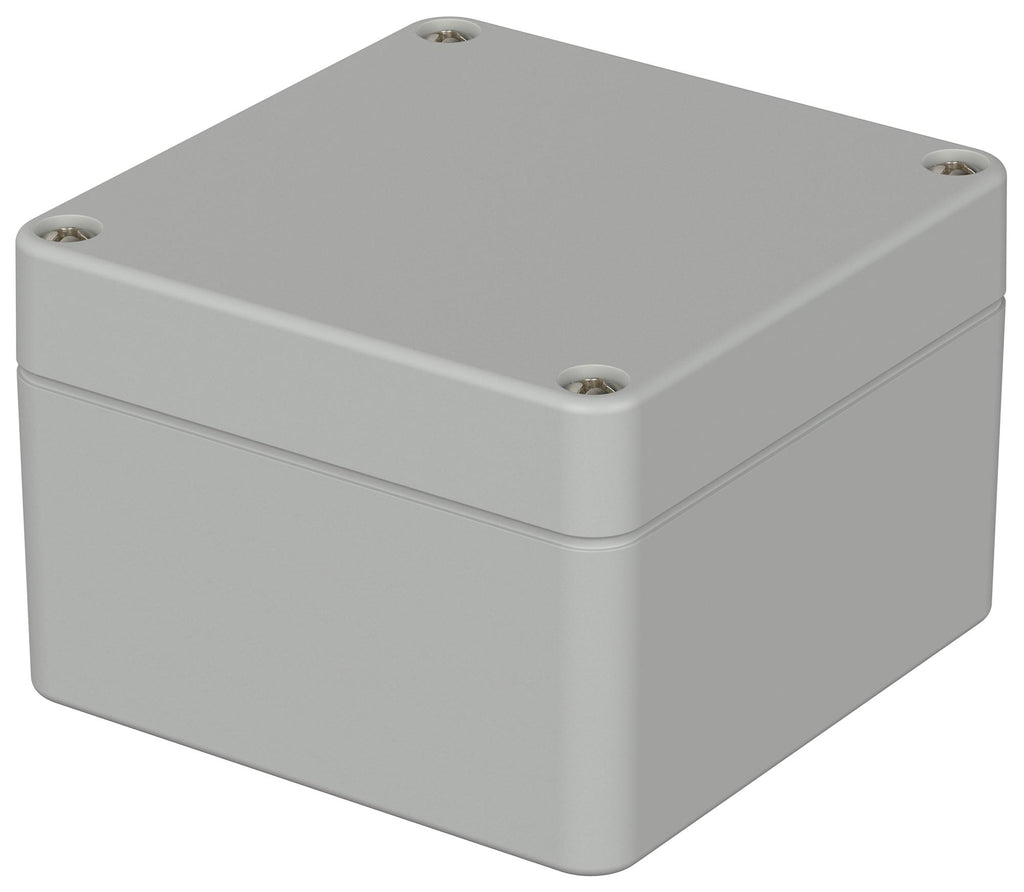

02210094 is an Euromas classic industrial enclosure made of polycarbonate V0. The material PC UL 94 V0 is suitable for outdoor use (F1 listing according to UL 746C) and complies with the requirement set R22 according to DIN EN 45545-2.
- PCBs can be securely fastened via screw domes in the bottom part
- Cover screws secured against falling out, are screwed into high-quality threaded bushes
- The enclosure can be mounted on the wall using the screw channels in the lower part
- Large working surfaces and versatile mounting options for connectors, switches and buttons
- Impact resistance IK 07 according to IEC 62262
- Temperature resistance: -30°C to 110°C
- Material: enclosure polycarbonate V0, seal CR
- Protection class IP66, NEMA 3 rating
- Colour light grey similar to RAL7035
- 55mm x 80mm x 82mm (height x width x depth) enclosure size
Contents
Lid and base, Lid screws made of V2A, Self-tapping screws for mounting bosses.
Product details
| Enclosure Type | Industrial |
| External Height - Metric | 55mm |
| External Depth - Metric | 82mm |
| Body Colour | Light Grey |
| External Height - Imperial | 2.17" |
| External Depth - Imperial | 3.23" |
| SVHC | No SVHC (27-Jun-2024) |
| Enclosure Material | Polycarbonate |
| External Width - Metric | 80mm |
| IP Rating | IP66 |
| NEMA Rating | NEMA 3 |
| External Width - Imperial | 3.15" |
| Product Range | Euromas Series |
Other details
| Brand | BOPLA |
| Part Number | 02210094 |
| Quantity | Each |
| Drawing (88.24KB) EN | View or download |
| CAD Altium_Designer (26.94KB) EN | View or download |
| CAD Multiple Formats (258.79KB) EN | View or download |
