Product Overview

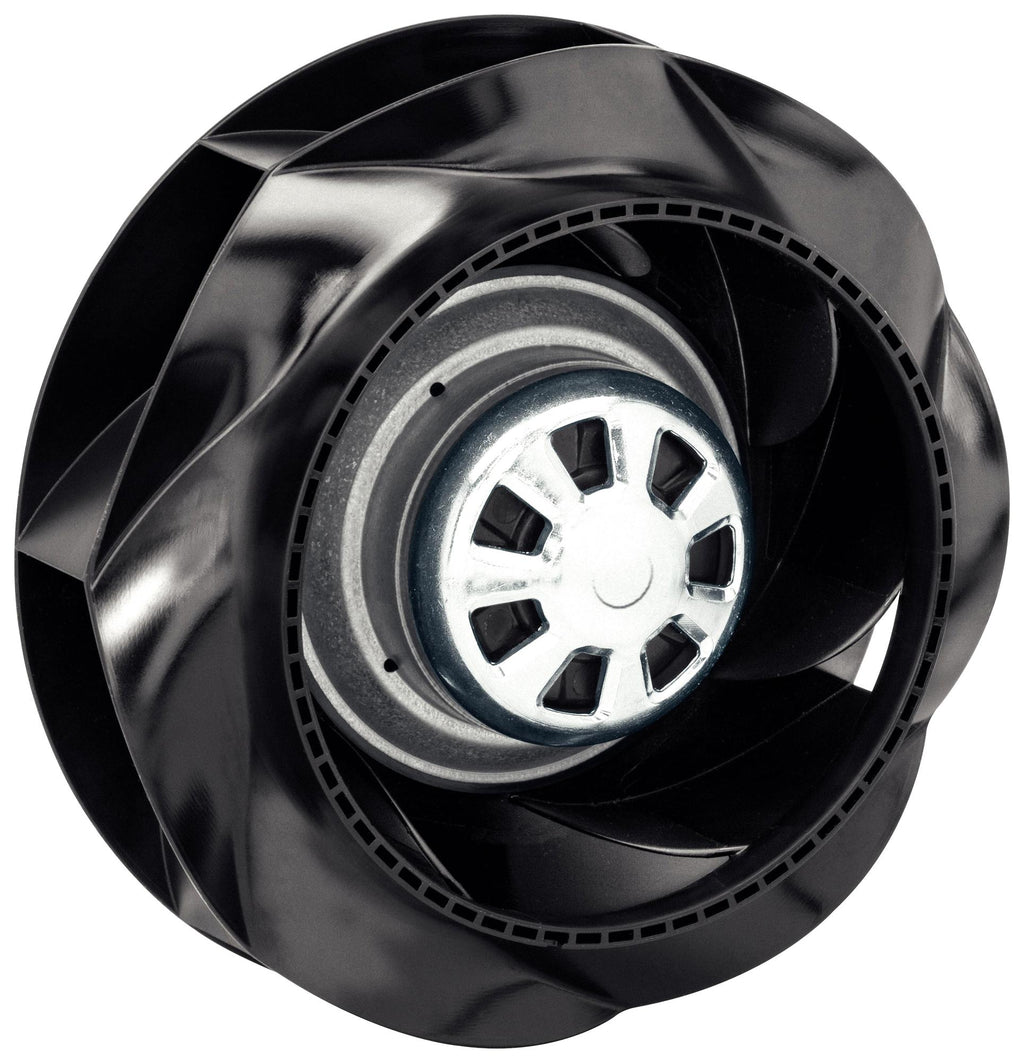

R3G133-RA01-14 is an EC RadiCal centrifugal fan with backward curved blades. It has been designed for minimum energy consumption and top performance. Typical applications include air purifiers, electronic control cabinets, heat pumps & residential ventilation units.
- Fitted with highly efficient GreenTech EC motor
- Voltage range 200VAC to 240VAC, 50 / 60Hz
- Low-pressure centrifugal solution
- Compact design due to external rotor motor technology
- 100% speed control via analogue voltage or PWM signal
- Aerodynamic shape reduces noise emission
- Long service life
- EC control options available
- Supplied with inlet ring to suit
Product details
| Blower Type |
Centrifugal |
| Voltage Type |
AC |
| External Depth |
63mm |
| Air Flow - m3/min |
4.7m³/min |
| Bearing Type |
Ball Bearing |
| Power Rating |
27W |
| IP Rating |
IP54 |
| Supply Voltage |
240VAC |
| Fan Frame Size |
133mm |
| Air Flow - CFM |
165CFM |
| Noise Rating |
58dBA |
| Power Connection Type |
7 Lead Wires with Connector |
| Product Range |
RadiCal Series |
| SVHC |
No SVHC (27-Jun-2024) |
