Description
Product Overview

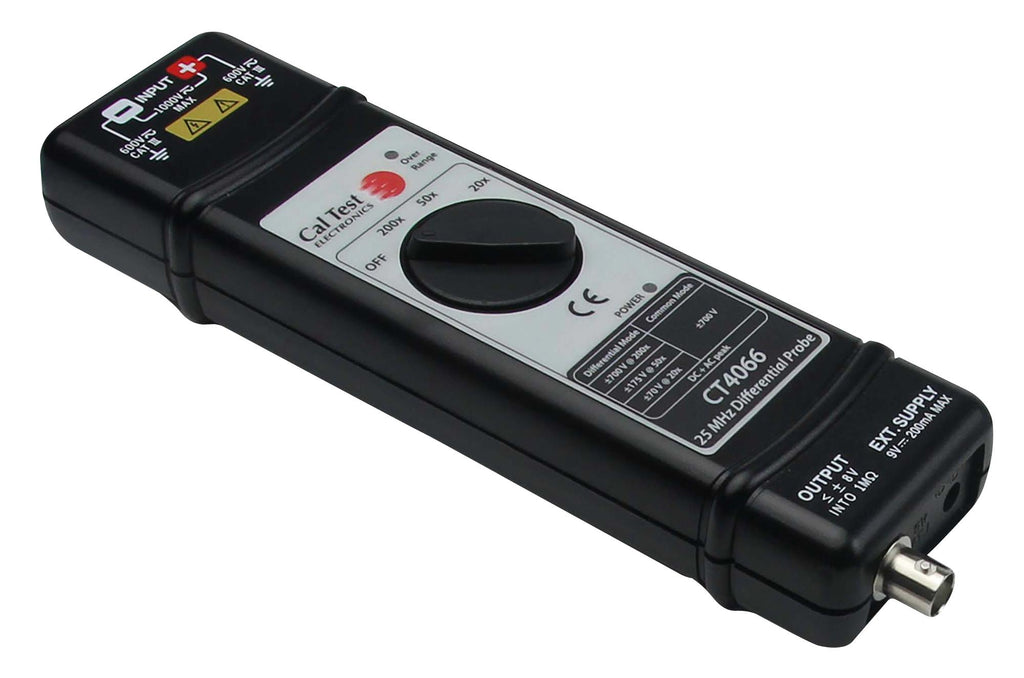

CT4066 is a 25MHz differential probe allows safe, accurate measurement between two voltage points where neither point is referenced to ground. The probe offers both a 25Hz bandwidth for the 50x and 200x attenuation settings and a 15MHz bandwidth for the 20x attenuation setting. Compatible with oscilloscopes from all major manufacturers, the probe is exclusively powered by the included 9 V power adapter.
- Selectable attenuation settings of 20x / 50x / 200x
- Risetime is 4ns for 50x/200x, 24 ns for 20x
- Meets IEC 61010-031 safety standard
- ±700V differential i/p voltage at 200x
- High accuracy of ±2%, ±5mV offset(typical), 2mVrms noise(typical), 50 ohm source impedance
- Power and over range indicator LEDs
- 100cm BNC cable length, 55cm input leads length
- Dimension is 195 x 55 x 30mm
- Operating temperature range from 0°C to 50°C
Contents
Differential probe, 2 x pincer clips, black & red, 2 x alligator clips, black & red, 2 x sheathed 4mm banana plug test leads, silicone jacketed, black & red, 1 x insulated BNC cable, 100cm, 1 x 9V power adapter included (CT3957-NA).
Product details
| Oscilloscope Probe Function | Differential |
| Input Voltage Max | 700V |
| For Use With | Oscilloscopes |
| SVHC | No SVHC (27-Jun-2024) |
| Bandwidth | 25MHz |
| Test Probe Attenuation | 20:1, 50:1, 200:1 |
| Product Range | - |
Other details
| Brand | CAL TEST ELECTRONICS |
| Part Number | CT4066 |
| Quantity | Each |
| Operating Instructions (970.45KB) EN | View or download |
| Technical Data Sheet (1.26MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
