Description
Product Overview
CT4026 is a 18KV high voltage oscilloscope probe allows safe and accurate voltage measurement using your oscilloscope. It features a 1000:1 divider ratio with voltage up to 18KV (DC+peak AC), 12KV (ACrms) and bandwidth up to 150MHz. Compatible with oscilloscopes from all major manufacturers, the probe is a necessity for user safety during high voltage measurements. Can be used with your DMM by employing BNC converter CT3197B.
- High impedance input (200Mohm/1.5pF)
- Risetime is 2.4ns, output impedance is 1Mohm
- 10−35pF compensation range
- 2m cable length
- Dimension is 3.1 x 3.1 x 12.6 in (8 x 8 x 32 cm)
- One-year warranty
- Operating temperature range from -10°C to 55°C
- Meets IEC 61010-031 safety standard
- Handle/body: black/yellow colour
Contents

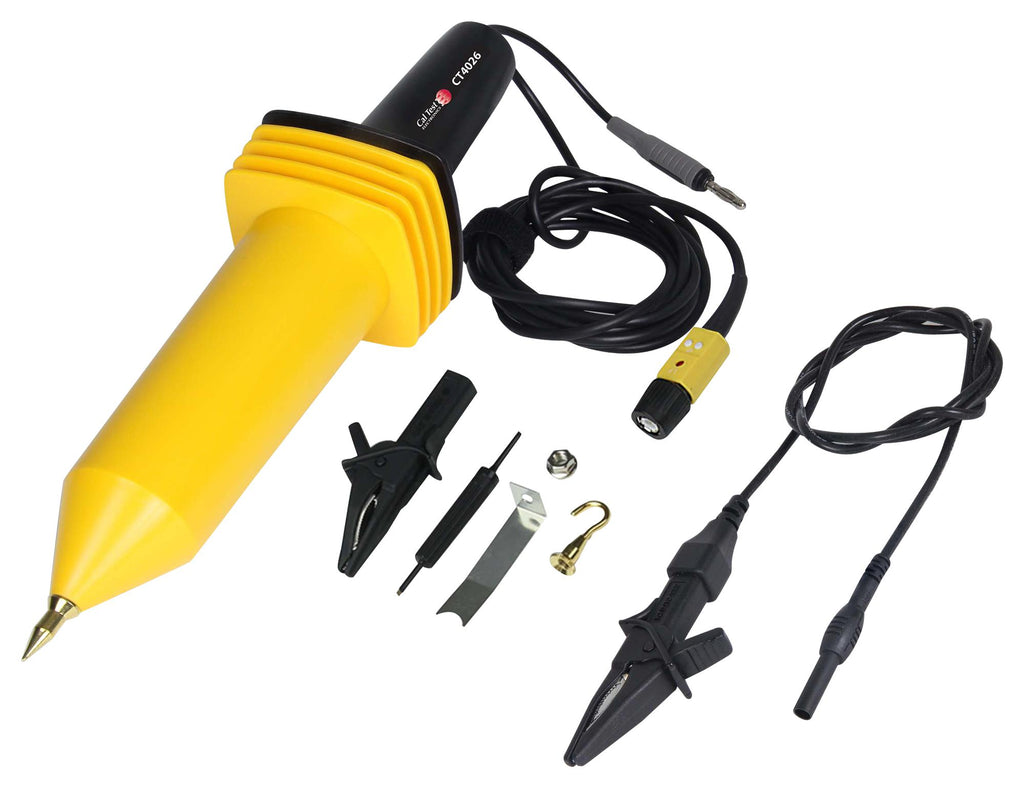

High voltage probe, Grounding alligator clip, Grounding lead extension w/ alligator clip, Trimmer tool, Tip, Hook tip, Flat bar tip, User manual, Foam-lined carrying case.
Product details
| Oscilloscope Probe Function | High-Voltage Divider |
| Input Voltage Max | 18kV |
| For Use With | Oscilloscopes |
| SVHC | No SVHC (27-Jun-2024) |
| Bandwidth | 150MHz |
| Test Probe Attenuation | 1000:1 |
| Product Range | - |
Other details
| Brand | CAL TEST ELECTRONICS |
| Part Number | CT4026 |
| Quantity | Each |
| Operating Instructions (1.43MB) EN | View or download |
| Technical Data Sheet (661.45KB) EN | View or download |
