Description
Product Overview

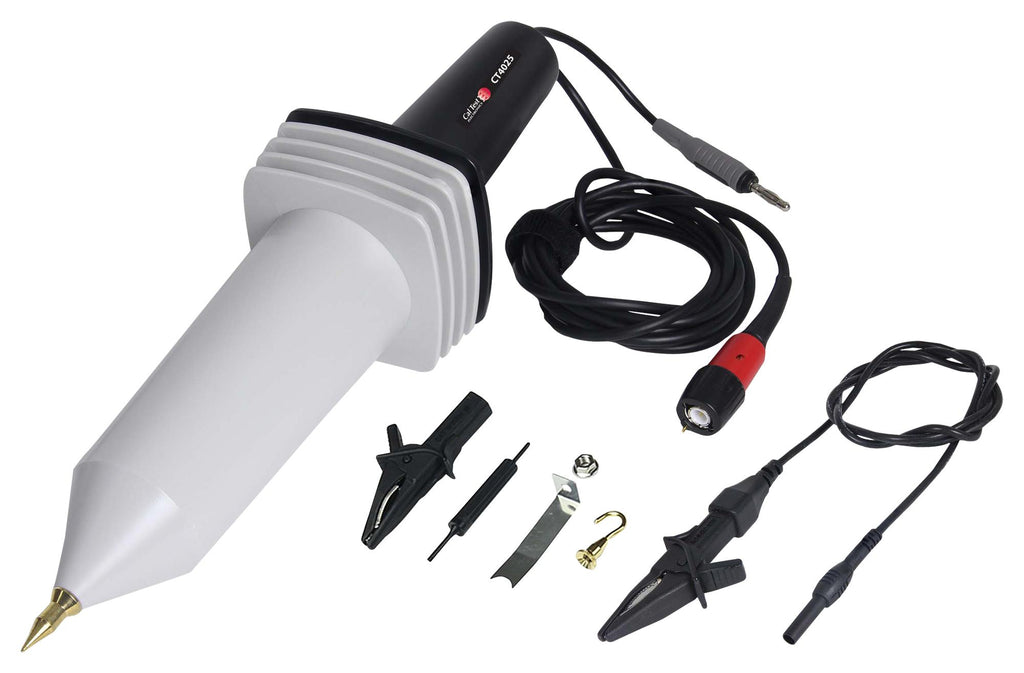

CT4025 is a 10KV high voltage oscilloscope probe allows safe and accurate voltage measurement using your oscilloscope. It features a 100:1 divider ratio with voltage up to 10KV (DC+peak AC), 7KV (ACrms) and bandwidth up to 120MHz. Compatible with oscilloscopes from all major manufacturers, the probe is a necessity for user safety during high voltage measurements. Can be used with your DMM by employing BNC Converter CT3197B.
- High impedance input (100Mohm/2pF)
- Risetime is 3ns, output impedance is 1Mohm
- 10−35pF compensation range
- 2m cable length
- Dimension is 3.1 x 3.1 x 12.6 in (8 x 8 x 32 cm)
- One-year warranty
- Operating temperature range from -10°C to 55°C
- Meets IEC 61010-031 safety standard
- Handle/body: black/grey colour
Contents
High voltage probe, Grounding alligator clip, Grounding lead extension w/ alligator clip, Trimmer tool, Tip, Hook tip, Flat bar tip, User manual, Foam-lined carrying case.
Product details
| Oscilloscope Probe Function | High-Voltage Divider |
| Input Voltage Max | 10kV |
| For Use With | Oscilloscopes |
| SVHC | No SVHC (27-Jun-2024) |
| Bandwidth | 120MHz |
| Test Probe Attenuation | 100:1 |
| Product Range | - |
Other details
| Brand | CAL TEST ELECTRONICS |
| Part Number | CT4025 |
| Quantity | Each |
| Operating Instructions (1.63MB) EN | View or download |
| Technical Data Sheet (617.40KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 90589.98 |
| 3-5 | ₹ 89665.59 |
| 5-10 | ₹ 87816.81 |
| 10+ | ₹ 85968.04 |
Bulk discount will be automatically applied during checkout based on quantity.
