Product Overview

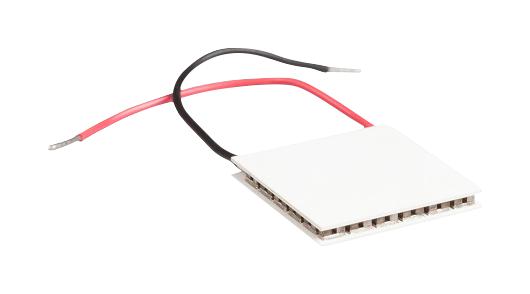

MP-ADV-127-11-17-E-C2 is a thermoelectric cooler module. Applications include automotive, industrial, telecommunications, medical, aerospace.
- Precise temperature control, solid-state reliability
- Temperature difference is 67°C at 300K
- Maximum voltage is 15.4V
- Maximum current is 3.2A
- 31.9W cooling power
- Flatness/parallelism is 0.08 / 0.08mm
- Maximum mounting pressure is 1.5MPa
- UL rated wire to 105°C
- Dimension is 30mm length x 3.6mm depth x 30mm width
Product details
| No. of Stages |
- |
| Current Max @ Diff Temperature Max |
3.2A |
| Length |
30mm |
| Depth |
3.6mm |
| Product Range |
- |
| Lead Wires |
Red & Black |
| Cooling Power Pc |
31.9W |
| Voltage Max @ Diff Temperature Max |
15.4V |
| Width |
30mm |
| Temperature Difference Max |
67°C |
| Internal Resistance |
- |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP-ADV-127-11-17-E-C2 |
| Quantity |
Each |
| Technical Data Sheet (312.21KB) EN |
View or download |
