Description
Product Overview

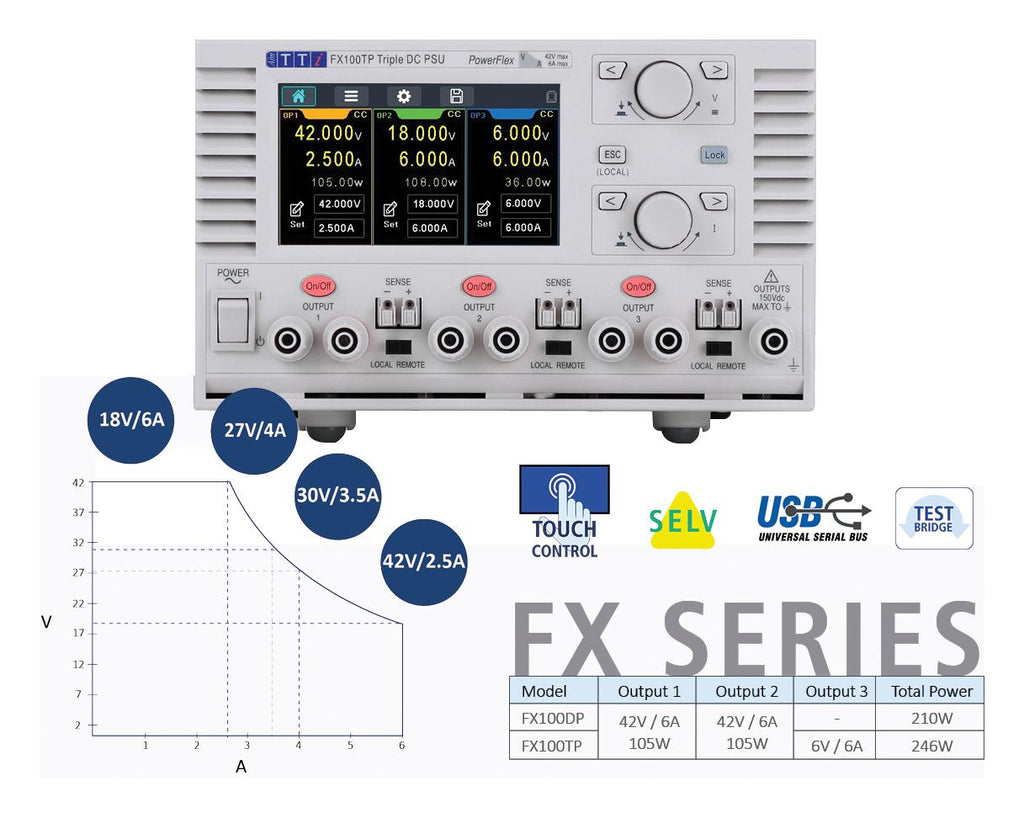

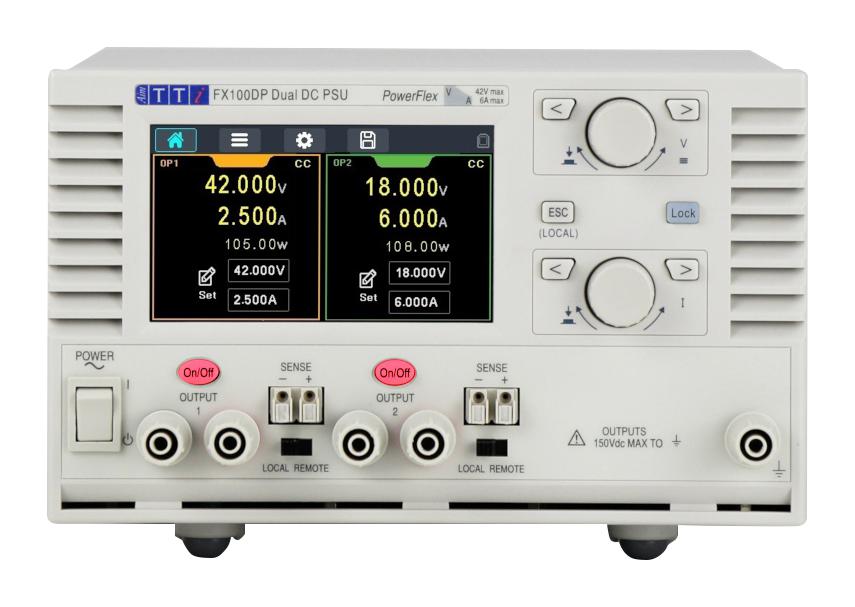

FX100DP is a FX series dual output PowerFlex DC laboratory power supply. FX series of power supply seamlessly combines versatility and safety within a compact design. SELV compliant with the efficiency of PowerFlex, it’s the cost effective choice for test and laboratory use.
- 42V / 6A 105W output 1, 42V / 6A 105W output 2 rated and 210W total power

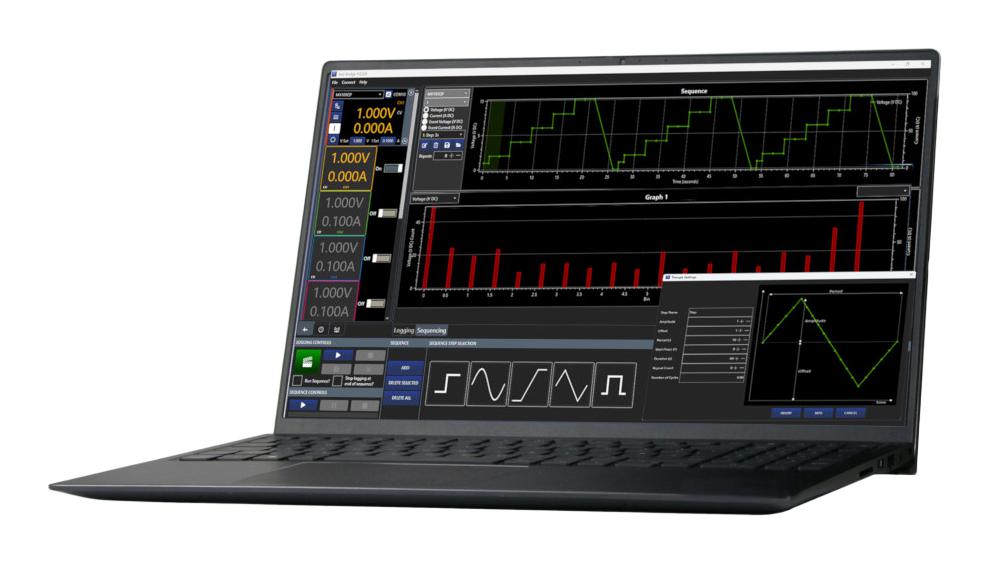

- Control by rotary, touch or remote USB
- 4.3” colour touchscreen display
- Simultaneous live control of voltage & current, instant access to voltage/current setting per output
- Voltage tracking V2 = V1, plus multi-on/off
- Low output ripple and noise, typically <2mV
- High setting resolution of 1mV and 1mA
- Variable OVP and OCP trips on all outputs, switchable remote sense capability
- 25 setting memories, voltage tracking (isolated tracking), selectable current meter averaging
- Compact footprint (214 x 140 x 300mm (WxHxD))
- UK mains plug (type G), as used in the UK, IRL, Cyprus, Saudi Arabia, Malta and many others.
Notes
Not suitable for charging batteries. Calibration available, visit our calibration services page for details.
Product details
| Power Supply Output Type | Adjustable |
| Output Voltage Min | 0V |
| Output Current Min | 0A |
| Power Rating | 210W |
| Supply Voltage Max | 240VAC |
| Product Range | FX Series |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Outputs | 2 Output |
| Output Voltage Max | 42V |
| Output Current Max | 6A |
| Supply Voltage Min | 110VAC |
| Manufacturer Warranty | 3 Years |
| Plug Type | UK Type G |
Other details
| Brand | AIM-TTI INSTRUMENTS |
| Part Number | FX100DP |
| Quantity | Each |
| Technical Data Sheet (3.75MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
