Product Overview
Also known as
4AQCBU5100A11J
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
10µF |
| Typical Applications |
DC Link |
| Voltage(AC) |
- |
| Humidity Rating |
- |
| Lead Spacing |
27.5mm |
| Peak Current |
127A |
| ESR |
6800µohm |
| Product Length |
31.5mm |
| Product Height |
29mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
AEC-Q200 |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 5% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
650V |
| Capacitor Terminals |
Radial Leaded |
| dv/dt Rating |
13V/µs |
| RMS Current (Irms) |
8.2A |
| Product Diameter |
- |
| Product Width |
19mm |
| Ripple Current |
11.7A |
| Product Range |
C4AQ Series |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
KEMET |
| Part Number |
C4AQCBU5100A11J |
| Quantity |
Each |

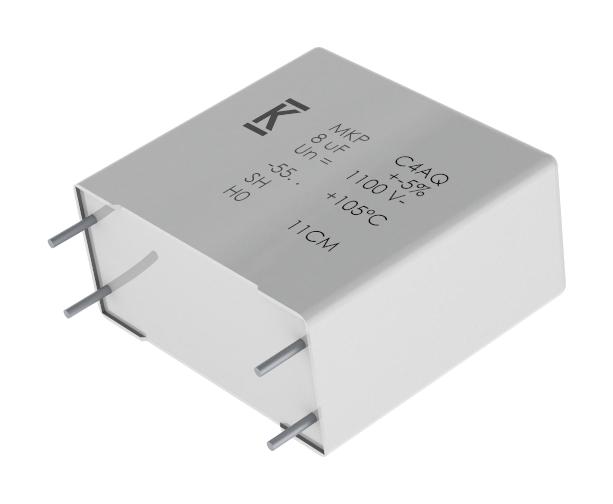

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
