Product Overview

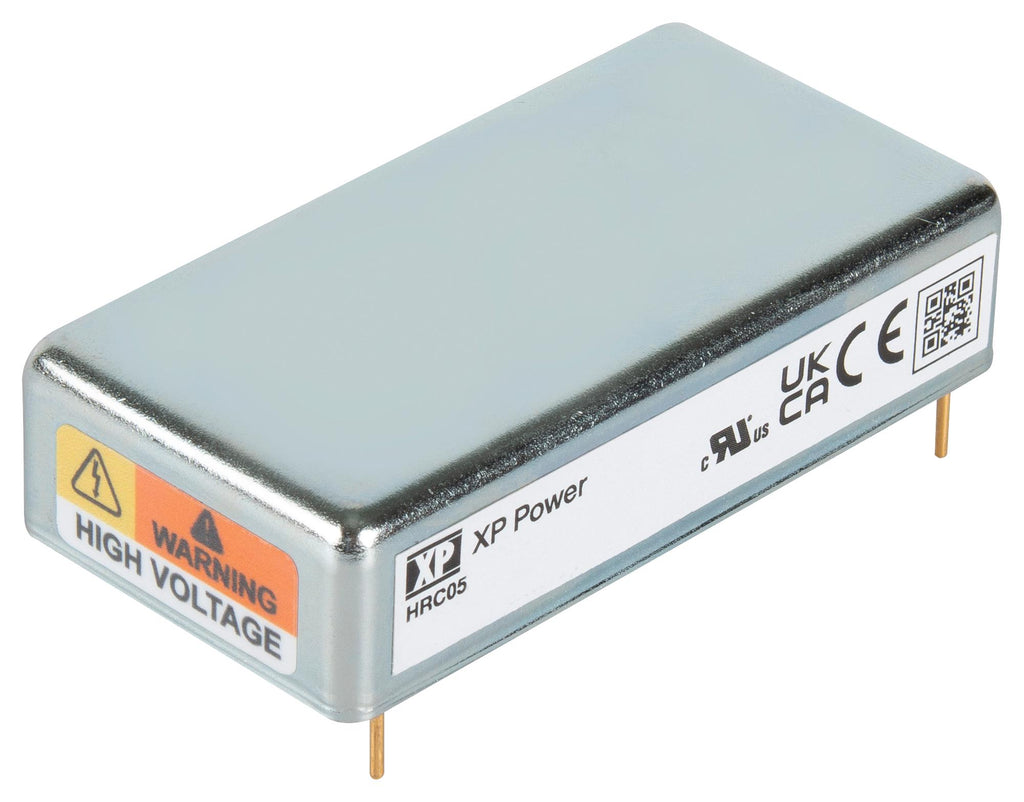

HRC0524S1K0P is a HRC05 series regulated 5W high voltage DC-DC converter. It provides fully adjustable output voltage with built in short circuit and overload protection, in a compact PCB-mount package. HRC05’s precise load and line regulation ensures reliable, stable and accurate power delivery, and its low ripple is ideal for critical, noise-sensitive applications. HRC05 features voltage and current monitoring and 0 to 100% voltage control for increased safety, flexibility and enhanced efficiency. Its advanced functionality, technical specifications, wide operating temperature, safety approvals and compact package allow easy integration into a wide range of high voltage applications in analytical instruments, medical devices and semiconductor fabrication equipment. Applications include mass spectrometry, electrophoresis, electrostatic chuck, high voltage bias, detectors and scanning electron microscopy.
- 0 to +1000V output voltage
- 24VDC input (22 to 30V)
- Voltage and current monitor output, on-board +5V reference
- Load and line regulation <0.01%, low ripple <0.01%
- Short circuit, arc and overload protections
- Switching frequency of 100KHz at maximum output voltage, full load
- UL/CSA/IEC/EN62368-1, UL/CSA/IEC/EN61010-1 certified
- 5-sided metal case, internally grounded, RTV vacuum encapsulation, UL94V-0 rated
- 3 year warranty
- Operating temperature range from -40°C to +70°C, dimension is 64.8 x 33.0 x 15.2mm
Product details
| Power Supply Applications |
ITE & Laboratory Equipment |
| Output Power Max |
5W |
| Output Voltage Max |
1kV |
| DC / DC Converter Output Type |
Adjustable |
| Input Voltage DC Max |
30V |
| Depth |
64.8mm |
| Product Range |
HRC05 Series |
| DC / DC Converter Type |
DIP-10, Module |
| Output Voltage Min |
- |
| Output Current Max |
5mA |
| Input Voltage DC Min |
22VDC |
| Height |
15.2mm |
| Width |
33mm |
| SVHC |
No SVHC (27-Jun-2024) |
