Product Overview

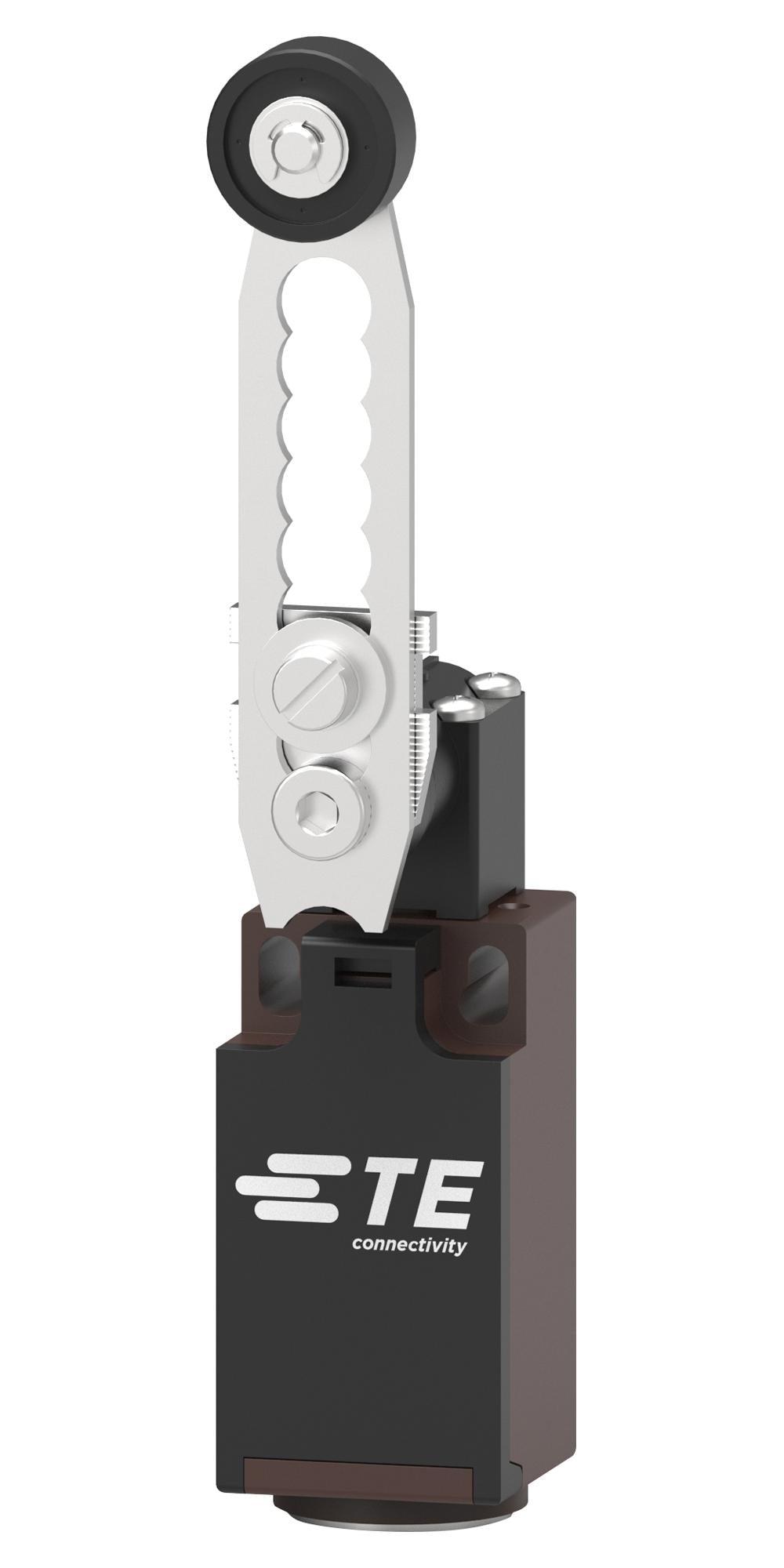

TLSTLS1114PB is a TLS series limit switch. The TLS series offers high durability with over 1 million cycles, flexibility with many styles of actuators and lower costs with both zinc and thermoplastic housings. The TLS series meets IEC 60947-5-1 and UL E303778 approved. Typical applications include automation control, manufacturing lines, safety monitoring. lift systems and door opening/closing.
- Thermoplastic body material
- Slow action contact switching
- Silver contact plating, 1 NO + 1 NC contact arrangement
- Adjustable roller lever (V2) actuator type
- Actuator material is PA (nylon)/ POM
- Bidirectional motion direction
- 1,000,000 cycles of actuation, cable gland entry included, Cu alloy contact material
- IP65, IP67 to EN 60529 protection class, -30°C t0 +80°C ambient temperature
- 4A / 240VAC, 1A / 2 VDC screw terminals (utilisation category AC-15, DC-13 Ie/Ue)
- 5000/hr switching frequency, screw terminals M20x1.5 termination
Product details
| Limit Switch Actuator |
Adjustable Roller Lever |
| Contact Current AC Max |
4A |
| Operating Force Max |
0.2N |
| Contact Current DC Max |
1A |
| SVHC |
No SVHC (04-Feb-2026) |
| Contact Configuration |
SPST-NO, SPST-NC |
| Contact Voltage AC Max |
240V |
| Product Range |
TLS Series |
| Contact Voltage DC Max |
24V |
Other details
| Brand |
TE CONNECTIVITY - ALCOSWITCH |
| Part Number |
TLSTLS1114PB |
| Quantity |
Each |
| Technical Data Sheet (3.19MB) EN |
View or download |
