Description
Product Overview

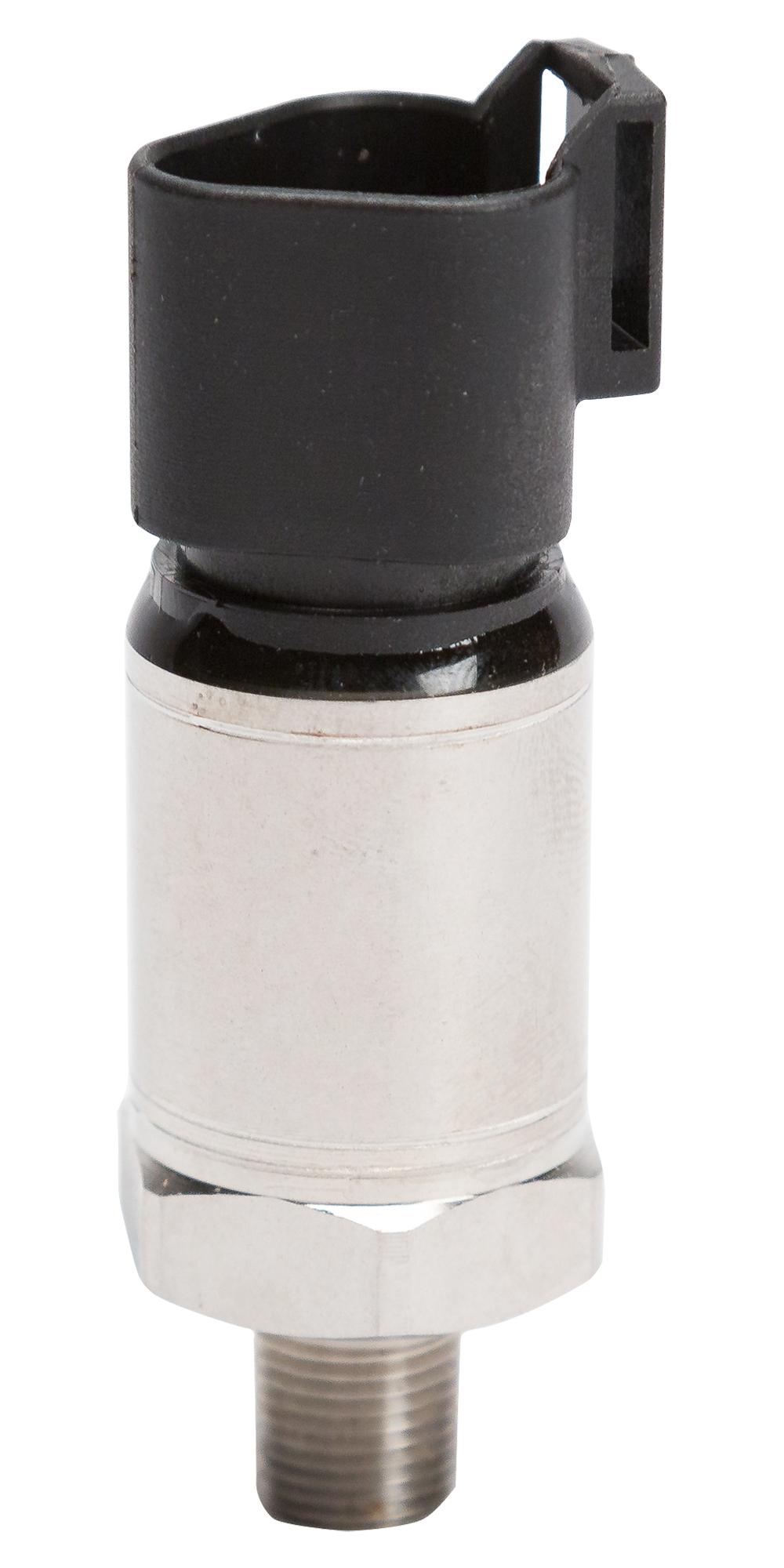

P52-500-S-2B-D-5V-000-000 is a P52 series pressure sensor. It is a robust, media isolated transducer, housed in a compact design, suitable for both harsh and benign media. Designed to withstand challenging conditions, the P52 series offers a cost-effective pressure transducer solution delivering superior accuracy and dependable performance for a wide variety of applications and markets. The target markets are medical, mil/aero, industrial, HVOR, HVAC/R, AG, automotive, construction, performance sports, fuel cells, energy and water management. Typical applications include refrigeration, hydraulics & pneumatics, pumps (water, hydraulic fluids), compressors, process controls, agriculture equipment, robotics, sterilizers, fuel pressure (gas, diesel, propane), coolant pressure, sprayers, hydrogen storage, level sensing, oil pressure, turbo pressure and saltwater applications.
- 500psi maximum sealed gauge operating pressure
- 7/8” (hex), 1/8”-27 NPT (thread), 304L SS port configuration
- Deutsch connector
- 1 to 5V output (8 to 30V input only)
- 8V to 30V supply voltage, < 4mA current draw, 1.0V zero pressure output
- ±0.25% typical accuracy BFSL at 25°C, <±0.25 FS/year long-term stability (typical)
- Operating temperature range from -40 to 125°C (integral connector)
- 3 X FS proof pressure, 10 X FS or 15,000 PSI (whichever is less) burst pressure
- IP68 protection
Product details
| Pressure Type | Sealed Gauge |
| Pressure Port Type | NPT |
| Operating Pressure Min | 0psi |
| Operating Pressure Max | 500psi |
| Pressure Port Size | 1/8"-27 |
| Transducer Connection / Termination | Deutsch, 3 Pin |
| Supply Voltage Max | 30VDC |
| Output Interface | - |
| Housing Material | 304L Stainless Steel |
| Operating Temperature Max | 125°C |
| SVHC | No SVHC (27-Jun-2024) |
| Sensor Output Type | Analogue |
| Pressure Measurement Type | Sealed Gauge |
| Voltage Rating | 30V |
| Port Style | 1/8" - 27 MNPT |
| Supply Current | 4mA |
| Supply Voltage Min | 30VDC |
| Media Type | Gas, Hydraulic Fluid, Water |
| Operating Temperature Min | -40°C |
| Product Range | MediaSensor P52 Series |
Other details
| Brand | AMPHENOL SSI TECHNOLOGIES |
| Part Number | P52-500-S-2B-D-5V-000-000 |
| Quantity | Each |
| Technical Data Sheet (574.77KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
