Product Overview

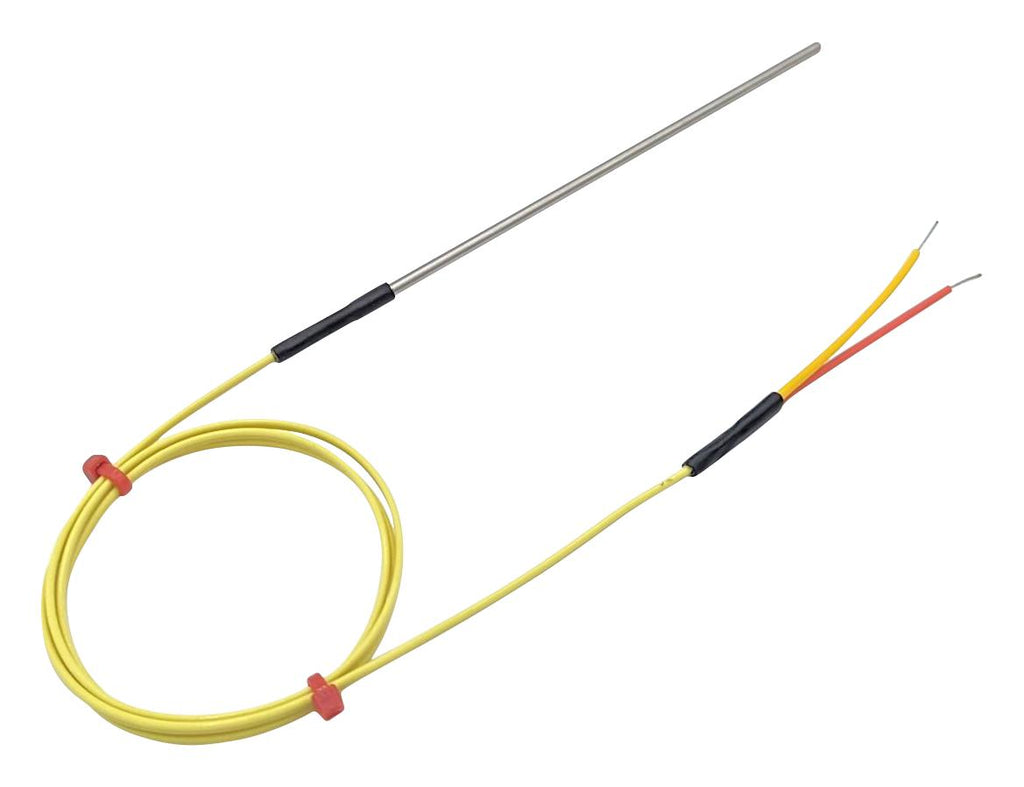

FAA-ISK-6.0-250-NP-1.0-C2-T-A is an ANSI fabricated tube thermocouple with crimp seal and lead wire. Typical applications include industrial process control, pipes or ducts, ovens and heating, general purpose.
- 316 stainless steel protection tube and 1 metre PFA flat pair flexible lead wire
- Class 1 thermocouple accuracy
- Sensor temperature rating range from -75°C to +250°C
- 1m cable length, 2 wires
- Stripped wires termination
- Thermocouple type K
- 250mm sheath length
- 6mm sheath diameter
Product details
| Thermocouple Type |
K |
| Measured Temperature Max |
250°C |
| Lead Length - Imperial |
3.3ft |
| Probe Length - Imperial |
9.84" |
| Probe Diameter - Imperial |
0.24" |
| Insulation |
PFA |
| Thermocouple Wire Standard |
ANSI |
| Product Range |
- |
| Measured Temperature Min |
-75°C |
| Sensor Body Material |
316 Stainless Steel |
| Lead Length - Metric |
1m |
| Probe Length - Metric |
250mm |
| Probe Diameter - Metric |
6mm |
| Thermocouple Termination |
Stripped Wire Leads |
| Thermocouple Shielding |
Ungrounded |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
LABFACILITY |
| Part Number |
FAA-ISK-6.0-250-NP-1.0-C2-T-A |
| Quantity |
Each |
| Technical Data Sheet (792.57KB) EN |
View or download |
