Product Overview
MIMX8UD3DVP08SC is an i.MX 8ULP application processor. It features NXP’s advanced implementation of the dual Arm® Cortex®-A35 cores alongside an Arm Cortex-M33. This combined architecture enables the device to run a rich operating system (such as Linux) on the Cortex-A35 core and an RTOS (such as FreeRTOS) on the Cortex-M33 core. It also includes a Fusion DSP for low-power audio and a HiFi4 DSP for advanced audio and machine learning applications. The i.MX 8ULP processor provides a 32-bit LPDDR3/LPDDR4/LPDDR4X memory interface and a number of other interfaces for connecting peripherals, such as WLAN, Bluetooth™, GPS, and displays. Additionally, there are 2 co-processors connected to the Cortex-M33 core: PowerQuad and Casper, accelerating DSP and cryptography functions, respectively.
- 2 core CPU, 900mV to 1.05V supply voltage
- CAN, Ethernet, I²C, I³C, SAI, SPI, UART interfaces, 64-bit data bus width
- 512Kb of L2 cache with snoop control unit (SCU), NEON™ SIMD engine
- 64Kb of RAM, 192Kb of boot ROM
- FlexSPI Serial flash interface to quad/octalSPI flash device
- NIST-approved random number generator, 32Kb secure RAM
- RISC-V ISA compliant CPU core, dedicated code and data RAM
- Consumer operating temperature range from 0 to 95°C
- 485-pin MAPBGA package
Product details
| Product Range |
i.MX 8 Family i.MX 8ULP Series Microprocessors |
| Program Memory Size |
- |
| No. of Pins |
485Pins |
| Supply Voltage Max |
1.05V |
| Interfaces |
CAN, Ethernet, I2C, I3C, SAI, SPI, UART |
| Data Bus Width |
64 bit |
| Operating Temperature Min |
0°C |
| Qualification |
- |
| MPU Family |
i.MX 8 |
| No. of CPU Cores |
2Cores |
| IC Case / Package |
MAPBGA |
| Supply Voltage Min |
900mV |
| Operating Frequency Max |
800MHz |
| No. of I/O's |
- |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
95°C |
| MPU Series |
i.MX 8ULP |
| SVHC |
No SVHC (27-Jun-2024) |
Other details

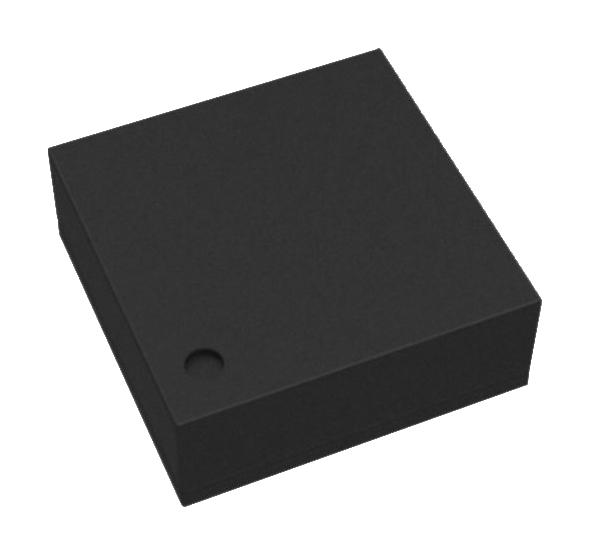

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
