Product Overview
MIMX8MN3DVPIZAA is a i.MX 8M Nano UltraLite dual application processor. It represents NXP’s latest graphics and audio experience combining state-of-the-art media-specific features with high-performance processing while optimized for the lowest power consumption. The i.MX 8M Nano family of processors features advanced implementation of a quad Arm® Cortex®-A53 core, which operates at speeds of up to 1.5GHz. A general purpose Cortex®-M7 running up to 750MHz core processor is for real-time and low-power processing.
- 2 core CPU, 900mV to 1V supply voltage
- 1.4GHz max operating frequency, 137I/O's
- 64-bit data bus width, Ethernet, I²C, SDHC, SPI, UART, USB, PCIe interfaces
- Temperature sensor with programmable trip points
- General-purpose input/output (GPIO) modules with interrupt capability
- Arm® CoreSightTM debug and trace technology
- Trace Port Interface Unit (TPIU) to support off-chip real-time trace
- Cross triggering interface (CTI), support for 4-pin (JTAG) debug interface
- Consumer operating temperature range from 0 to 90°C
- 306-pin FCBGA package
Product details
| Product Range |
i.MX 8M Family i.MX 8M Nano UltraLite Dual Series Microprocessors |
| Program Memory Size |
- |
| No. of Pins |
306Pins |
| Supply Voltage Max |
1V |
| Interfaces |
Ethernet, I2C, SDHC, SPI, UART, USB, PCIe |
| Data Bus Width |
64 bit |
| Operating Temperature Min |
0°C |
| Qualification |
- |
| MPU Family |
i.MX 8M |
| No. of CPU Cores |
2Cores |
| IC Case / Package |
FCBGA |
| Supply Voltage Min |
900mV |
| Operating Frequency Max |
1.4GHz |
| No. of I/O's |
137I/O's |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
95°C |
| MPU Series |
i.MX 8M Nano UltraLite Dual |
| SVHC |
No SVHC (27-Jun-2024) |
Other details

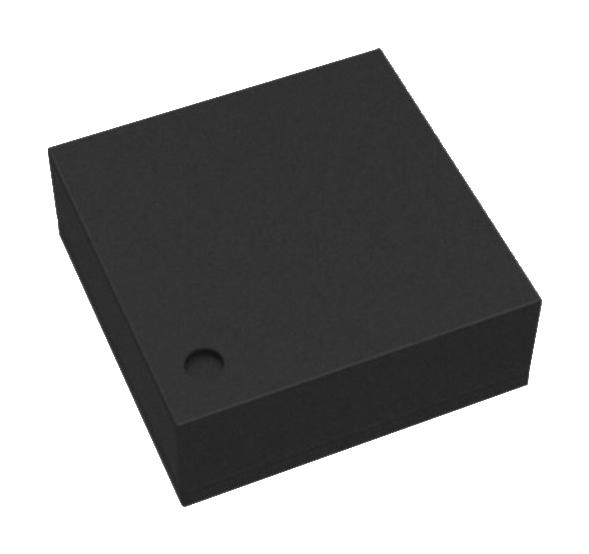

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
