Product Overview
NXP LPC865M201JHI48/0K ARM MCU, LPC Family LPC800 Series Microcontrollers, ARM Cortex-M0+, 32 bit, 60 MHz, 64 KB
Product details
| Product Range |
LPC Family LPC800 Series Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
64KB |
| IC Case / Package |
HVQFN |
| Interfaces |
I2C, I3C, SPI, UART, USART |
| ADC Channels |
12Channels |
| Supply Voltage Min |
1.8V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
LPC800 |
| SVHC |
No SVHC (27-Jun-2024) |
| Device Core |
ARM Cortex-M0+ |
| Operating Frequency Max |
60MHz |
| No. of Pins |
48Pins |
| No. of I/O's |
42I/O's |
| RAM Memory Size |
8KB |
| ADC Resolution |
12Bit |
| Supply Voltage Max |
3.6V |
| Operating Temperature Max |
105°C |
| MCU Family |
LPC |
| Qualification |
- |
Other details
| Brand |
NXP |
| Part Number |
LPC865M201JHI48/0K |
| Quantity |
Each |
| Technical Data Sheet (1.87MB) EN |
View or download |

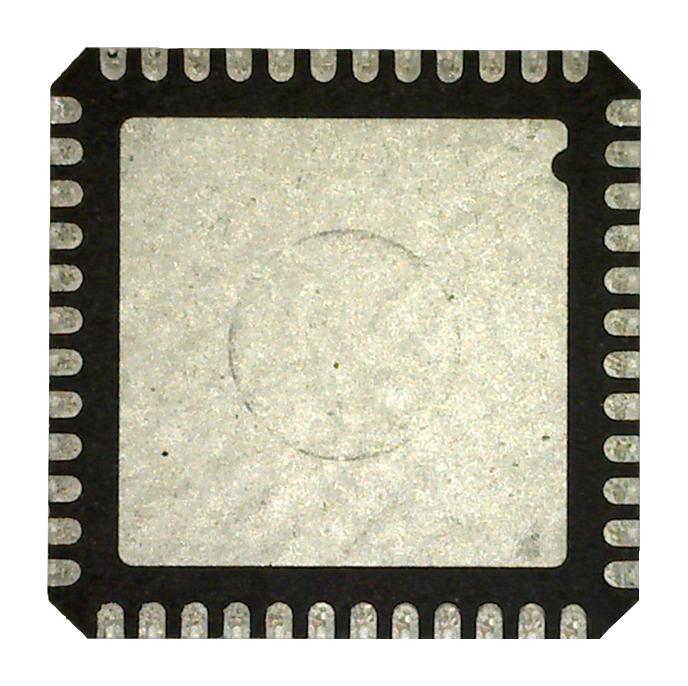

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
