Product Overview
LPC844M201JHI48E is a LPC84x Arm Cortex-M0+ based, low-cost 32-bit MCU family operating at CPU frequencies of up to 30MHz.
- 64Kb flash, 8Kb SRAM, 2 USART, 2 I²C, 2 SPI, 42 GPIO
- Fast initialization memory (FAIM) allows the user to configure chip behaviour on power-up
- Boot loader, supports flash in-application programming (IAP)
- Switch matrix for flexible configuration of each I/O pin function
- CRC engine, DMA with 25 channels and 13 trigger inputs, capacitive touch interface
- Crystal oscillator with an operating range of 1MHz to 25MHz
- Programmable watchdog oscillator with a frequency range of 9.4KHz to 2.3MHz
- Timer-controlled self wake-up from deep power-down mode, power-on reset (POR)
- Single power supply range from 1.8V to 3.6V, brownout detect (BOD)

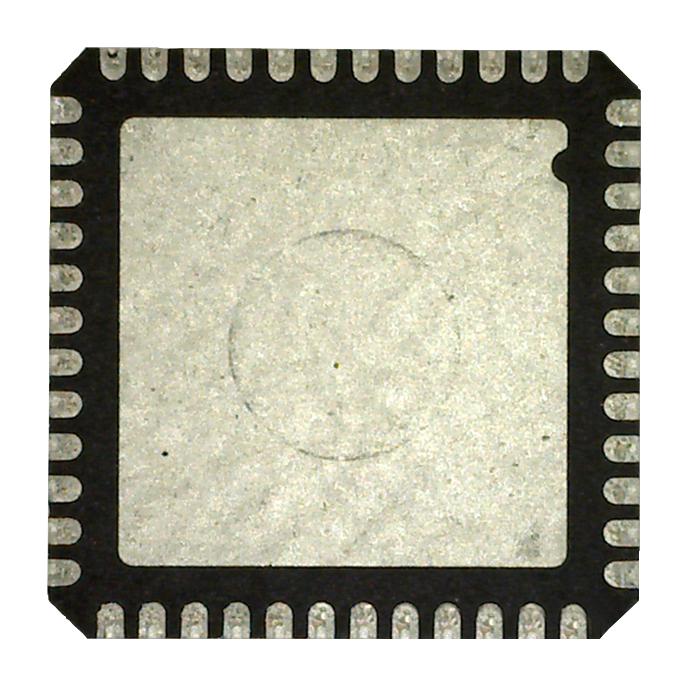

- Operating temperature range from -40°C to +105°C, HVQFN48 package
Product details
| Product Range |
LPC Family LPC800 Series Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
64KB |
| IC Case / Package |
HVQFN |
| Interfaces |
I2C, SPI, UART, USART |
| ADC Channels |
12Channels |
| Supply Voltage Min |
1.8V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
LPC800 |
| SVHC |
No SVHC (27-Jun-2024) |
| Device Core |
ARM Cortex-M0+ |
| Operating Frequency Max |
30MHz |
| No. of Pins |
48Pins |
| No. of I/O's |
42I/O's |
| RAM Memory Size |
8KB |
| ADC Resolution |
12Bit |
| Supply Voltage Max |
3.6V |
| Operating Temperature Max |
105°C |
| MCU Family |
LPC |
| Qualification |
- |
Other details
| Brand |
NXP |
| Part Number |
LPC844M201JHI48E |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |
