Product Overview
LPC55S16JEV59E is a LPC55S1x series 32bit ARM Cortex-M33 based microcontroller for embedded applications. This MCU features CASPER crypto co-processor that is provided to enable hardware acceleration for various functions required for certain asymmetric cryptographic algorithms, such as, Elliptic Curve Cryptography (ECC). Also features PRINCE module for real-time encryption of data being written to on-chip flash and decryption of encrypted flash data during read to allow asset protection, such as securing application code, and enabling secure flash update.
- 256KB flash, 96KB total SRAM, CASPER crypto/FFT engine, RNG, CANFD, 37 GPIO, USB HS
- Secure boot, PRINCE model, PUF controller, HASH-AES, TrustZone
- Operating temperature range from -40°C to +105°C, VFBGA59 package
- ARM Cortex-M33 core (r0p4), running at a frequency of up to 150MHz
- Operating from internal DC-DC converter, single power supply 1.8-3.6V, JTAG boundary scan supported
- Integrated PMU (Power Management Unit) to minimize power consumption
- ARM Cortex M33 built-in nested vectored interrupt controller (NVIC)
- Non-maskable interrupt (NMI) input with a selection of sources
- Serial wire debug with eight breakpoints and four watch point
- System tick timer, memory protection unit (MPU)
Product details
| Product Range |
LPC Family LPC5500 Series Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
256KB |
| IC Case / Package |
VFBGA |
| Interfaces |
CANFD, I2C, I2S, SPI, UART, USART, USB |
| ADC Channels |
10Channels |
| Supply Voltage Min |
1.8V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
LPC5500 |
| MSL |
MSL 3 - 168 hours |
| Device Core |
ARM Cortex-M33F |
| Operating Frequency Max |
150MHz |
| No. of Pins |
59Pins |
| No. of I/O's |
37I/O's |
| RAM Memory Size |
96KB |
| ADC Resolution |
16Bit |
| Supply Voltage Max |
3.6V |
| Operating Temperature Max |
105°C |
| MCU Family |
LPC |
| Qualification |
- |
| SVHC |
No SVHC (27-Jun-2024) |
Other details
| Brand |
NXP |
| Part Number |
LPC55S16JEV59E |
| Quantity |
Each |
| Technical Data Sheet (3.42MB) EN |
View or download |

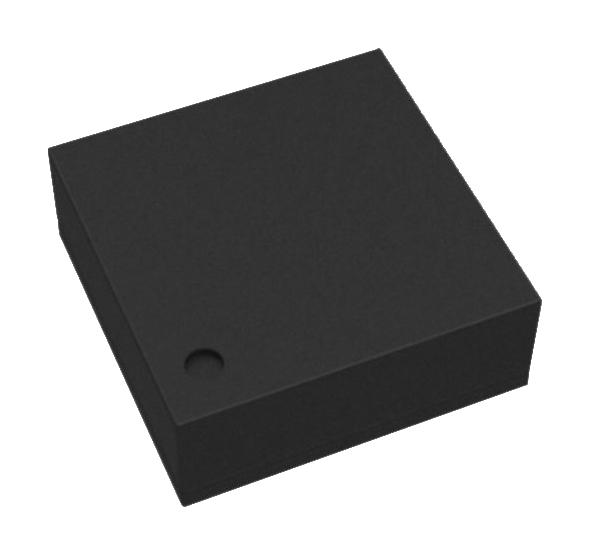

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
