NXP LPC55S69JBD64E ARM MCU, LPC Family LPC5500 Series Microcontrollers, ARM Cortex-M33F, 32 bit, 150 MHz, 640 KB

LPC55S69JBD64E is a LPC55S6x series 32bit ARM Cortex-M33 based microcontroller for embedded application. This device includes an ARM Cortex-M33 coprocessor, CASPER Crypto/FFT engine, PowerQuad hardware accelerator for DSP functions, PRINCE module for on-the-fly flash encryption/decryption, high-speed and full-speed USB host and device interface with crystal-less operation for full-speed, SD/MMC/SDIO interface, five general-purpose timers, one SCTimer/PWM, one RTC/alarm timer, one 24bit multi-rate timer (MRT), a windowed watchdog timer (WWDT), nine flexible serial communication peripherals (which can be configured as a USART, SPI, high speed SPI, I2C, or I2S interface), programmable logic unit (PLU), one 16bit 1.0 Msamples/sec ADC capable of simultaneous conversions. The ARM Cortex-M33 provides a security foundation, offering isolation to protect valuable IP and data with TrustZone® technology.

• Primary core (CPU0), secondary core (CPU1), secure boot, PUF controller, HASH-AES, SDIO protocol
• 640KB flash, 320KB total SRAM, USB (FS + HS) interface, 36 GPIO

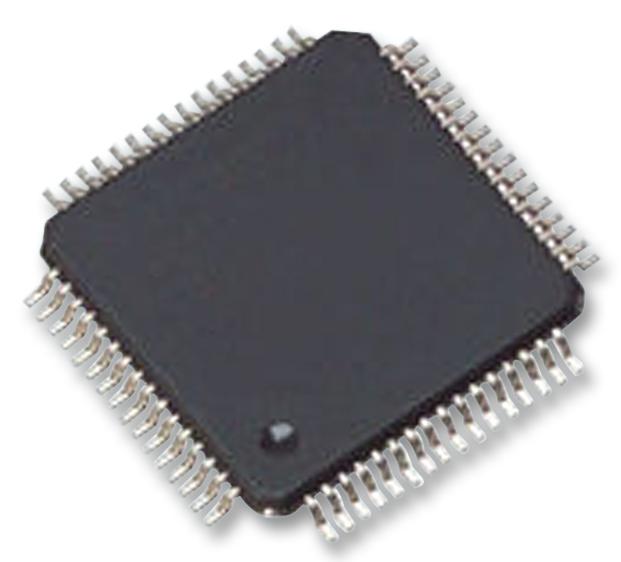

• Operating temperature range from -40°C to +105°C, package is HTQFP64
• ARM Cortex-M33 core (CPU0, r0p3):running at a frequency of up to 150MHz
• TrustZone®, floating point unit (FPU) and memory protection unit (MPU)
• ARM Cortex M33 built-in nested vectored interrupt controller (NVIC)
• Non-maskable Interrupt (NMI) input with a selection of sources, system tick timer
• Operating from internal DC-DC converter, single power supply 1.8V to 3.6V
• JTAG boundary scan supported
• Integrated PMU (Power Management Unit) to minimize power consumption
