Product Overview
MKE14Z32VLD4 is a KE1xZ Arm® Cortex®-M0+ 5V mainstream MCU with NXP touch and CAN control. It features up to 96MHz Cortex-M0+ core supporting a broad range of processing bandwidth requirements while maintaining excellent cost-effectiveness, easy to use packages and a wide range of memory densities. The boot ROM provides on-chip boot code and serial port drivers that could save flash space and provide flexible boot options in system programming support.
- Enhanced robust IOs make sure the high performance under noisy environment
- Analog comparator for fast response to external analogue change
- FlexIO provides flexibility for serial communication interface implementation
- Supported by MCUXpresso SDK, IDE and config tools
- Voltage range from 2.7 to 5.5V
- 32KB flash memory
- 4KB SRAM memory
- 38 GPIOs, 38/6 GPIOs (INT/HD), 12 ADC channels

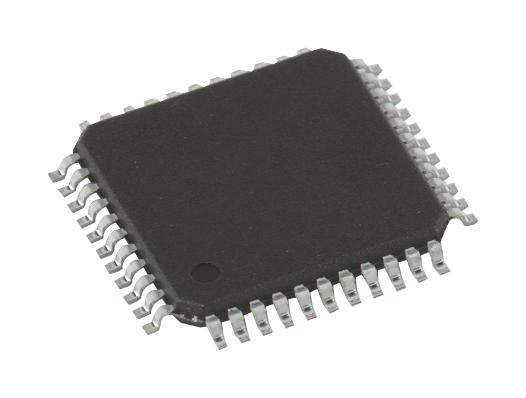

- 44-pin LQFP package
- Ambient temperature range from -40 to 105°C
Product details
| Product Range |
Kinetis E Family KE1x Series Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
32KB |
| IC Case / Package |
LQFP |
| Interfaces |
I2C, SPI, UART |
| ADC Channels |
12Channels |
| Supply Voltage Min |
2.7V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
KE1x |
| SVHC |
No SVHC (27-Jun-2024) |
| Device Core |
ARM Cortex-M0+ |
| Operating Frequency Max |
48MHz |
| No. of Pins |
44Pins |
| No. of I/O's |
38I/O's |
| RAM Memory Size |
4KB |
| ADC Resolution |
12Bit |
| Supply Voltage Max |
5.5V |
| Operating Temperature Max |
105°C |
| MCU Family |
Kinetis E |
| Qualification |
MIL-STD-883 |
