Product Overview
MKE14F256VLL16 is a Kinetis KE1xF-168MHz, performance with CAN 5V microcontroller based on Arm® Cortex®-M4. Kinetis KE1xF MCUs are the high-end series MCUs in Kinetis E family, providing robust 5V solution with the high performance Arm® Cortex®-M4 core running at up to 168lMHz. The Kinetis KE1xF MCU family also integrates CAN 2.0B compliant FlexCAN provides high reliable serial communication interface for industry applications, and rich suite of communication interfaces including LPUARTs, LPI2Cs, LPSPIs, and FlexIO.
- Cortex-M4 with DSP and FPU
- 256KB flash, 32KB SRAM, 64/4KB FlexNVM/FlexRAM and 16 ADC channels
- 89 GPIO, 89/8 GPIOs (INT/HD) (enhanced robust IOs ensure high performance under noisy environment)
- Analog comparator for fast response to external analogue change
- Programmable delay block w/ flexible trigger syst provide interconnection to onchip module, ADC, DAC
- 8KB Cache could improve the code and data access efficiency
- MPU for memory protect and code safety
- Faster TOM with comprehensive enablement solutions, including SDK, IDE, bootloader, RTOS
- Voltage range from 2.7V to 5.5V
- Ambient operating temperature range from -40 to 105°C, 100 pin LQFP package
Product details
| Product Range |
Kinetis E Family KE1xF Series Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
256KB |
| IC Case / Package |
LQFP |
| Interfaces |
I2C, SPI, UART |
| ADC Channels |
16Channels |
| Supply Voltage Min |
2.7V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
KE1xF |
| SVHC |
No SVHC (27-Jun-2024) |
| Device Core |
ARM Cortex-M4F |
| Operating Frequency Max |
168MHz |
| No. of Pins |
100Pins |
| No. of I/O's |
89I/O's |
| RAM Memory Size |
32KB |
| ADC Resolution |
12Bit |
| Supply Voltage Max |
5.5V |
| Operating Temperature Max |
105°C |
| MCU Family |
Kinetis E |
| Qualification |
MIL-STD-883 |
Other details

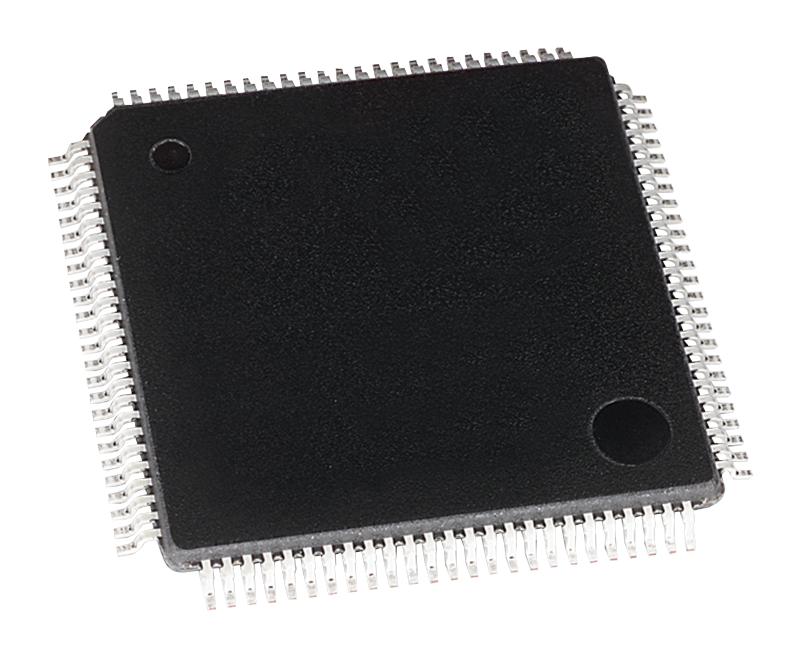

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
