Product Overview

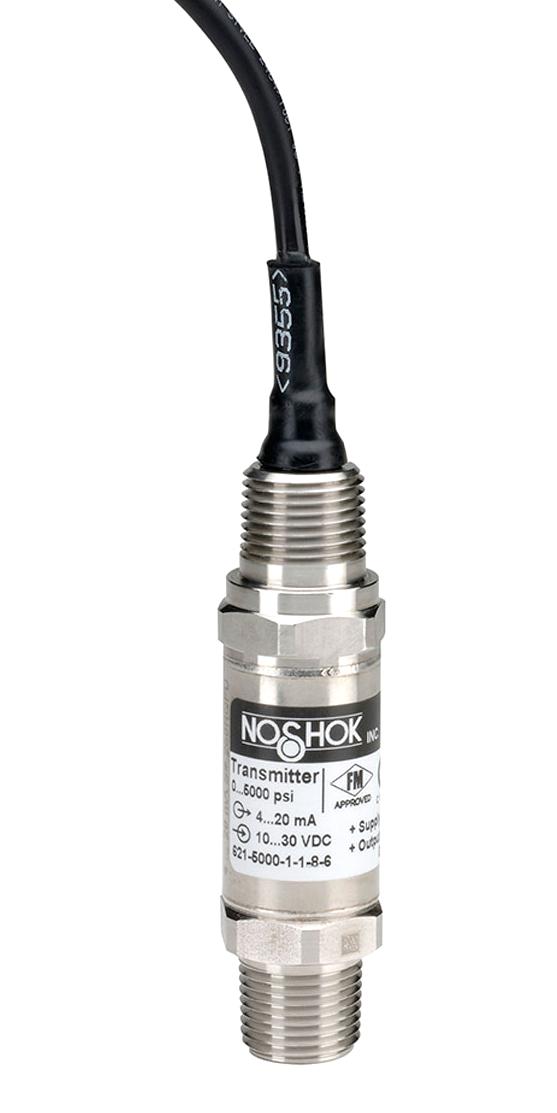

621-30/30-1-1-2-6 is a 621 series explosion-proof hazardous location pressure transmitter. Typical applications include chemical processing, gas pressure measurement, oil field & offshore, mining and well head measurement.
- Pressure range from -30inHg to 30psig
- ±0.25% full scale (BFSL) accuracy
- 4mA to 20mA, 2-wire output signal
- 1/4″ NPT male process connections
- 1/2″ NPT male conduit with 6' integral cable
- 316 stainless steel and elgiloy wetted parts
- IP67 rating
- Reverse polarity, over-voltage and short circuit protected
- Response time is ≤1ms (between 10% and 90% full scale), service life is >100,000,000 load cycles
Product details
| Product Range |
621 Series |
| SVHC |
Lead (04-Feb-2026) |
Other details
| Brand |
NOSHOK |
| Part Number |
621-30/30-1-1-2-6 |
| Quantity |
Each |
| Technical Data Sheet (223.88KB) EN |
View or download |
