Product Overview

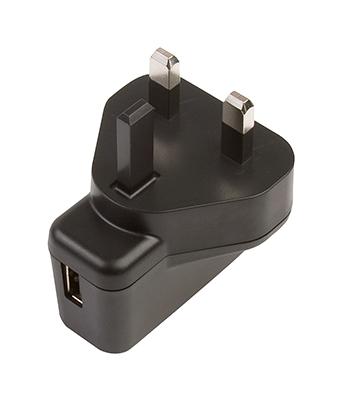

VFL05US050-UK-BB is a VFL05 series 5W external AC-DC wall-mount adaptor. It complies with level VI energy efficiency standards with high active mode efficiency and extremely low no-load power consumption. It also offers Class B conducted and radiated emissions, Class II construction, worldwide industrial safety approvals, benefiting system designers with easy integration into a wide range of applications in industrial technology, communications, home automation and consumer electronics. Applications include healthcare, instrumentation, security, robotics, technology.
- Fixed AC mains connector
- UL/EN/IEC 62368-1 ITE, AU/NZ 62368.1 safety approvals
- Limited power source (LPS) approved
- 1 year warranty
- UK plug type, USB A in case output connector
- 5V output voltage, 1000mA output current
- ±5% total regulation, 77% efficiency
- Input voltage range from 90 to 264VAC, 47 to 63Hz input frequency
- Temperature coefficient is 0.05%/°C maximum
- 0°C to +60°C operating temperature (derate from 100% load at 50°C to 50% load at 60°C)
Product details
| Power Supply Applications |
ITE, Industrial & Household |
| Output Power Max |
5W |
| Output Current - Output 1 |
1A |
| Output Current - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Product Range |
VFL05 Series |
| SVHC |
No SVHC (27-Jun-2024) |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
5V |
| Output Voltage - Output 2 |
- |
| Output Connector |
USB A |
| Output Current - Output 3 |
- |
| Input Voltage VAC |
90V AC to 264V AC |
| Plug Type |
UK Type G |
Other details
| Brand |
XP POWER |
| Part Number |
VFL05US050-UK-BB |
| Quantity |
Each |
| Declaration of Conformity (115.26KB) EN |
View or download |
| Technical Data Sheet (3.10MB) EN |
View or download |
