Product Overview

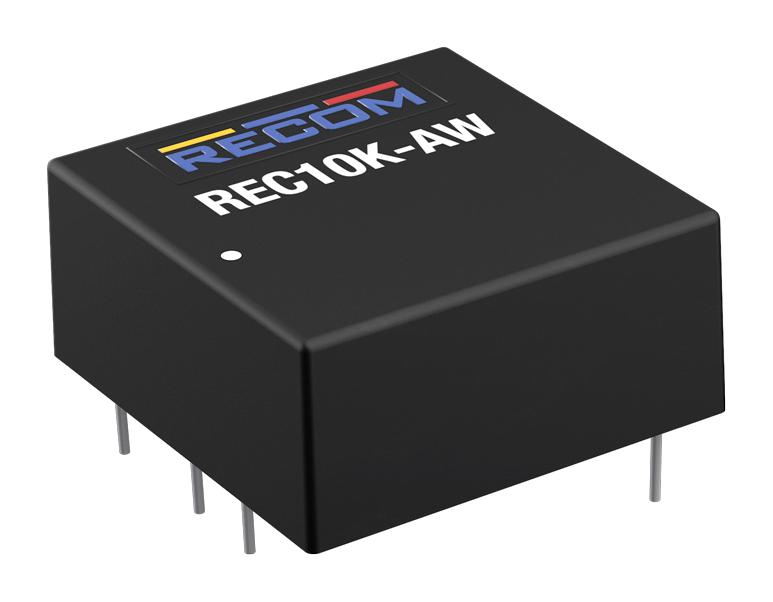

REC10K-4805SAW/H2 is a REC10K-AW series regulated DC-DC converter in an industry-standard 10W 1”x1” package. Despite its small size, the REC10K-AW converter is a fully specified device with high efficiency, no minimum load, 1600VDC/1min isolation, tight regulation, and low ripple/noise. The outputs are fully protected against short circuits, overcurrent, and overvoltage. This converter fits well in industrial applications where board space is at a premium.
- Wide 4:1 input voltage, single output DC to DC converter
- Input voltage range from 18 to 75VDC
- Nominal output voltage of 5VDC
- 2000mA output current
- 84% typical efficiency
- 5000µF maximum load capacitance
- Derates to 100°C ambient temperature
- ON/OFF control pin
- Dimension (LxWxH) is 25.4mm x 25.4mm x 10.16mm
- 3 year warranty
Product details
| Power Supply Applications |
ITE, Industrial & Household |
| Input Ratio |
4:1 |
| No. of Outputs |
1 Output |
| Output Current - Output 1 |
2A |
| Output Current - Output 2 |
- |
| Isolation Voltage |
1.6kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
10.2mm |
| Input Voltage DC Min |
18V |
| Product Range |
REC10K-AW Series |
| DC / DC Converter Type |
DIP |
| Output Power Max |
10W |
| Output Voltage - Output 1 |
5VDC |
| Output Voltage - Output 2 |
- |
| Output Regulation |
Regulated |
| Input Voltage DC Nom |
48V |
| Width |
25.4mm |
| Depth |
25.4mm |
| Input Voltage DC Max |
75V |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
RECOM POWER |
| Part Number |
REC10K-4805SAW/H2 |
| Quantity |
Each |
| Technical Data Sheet (1.25MB) EN |
View or download |
