Product Overview

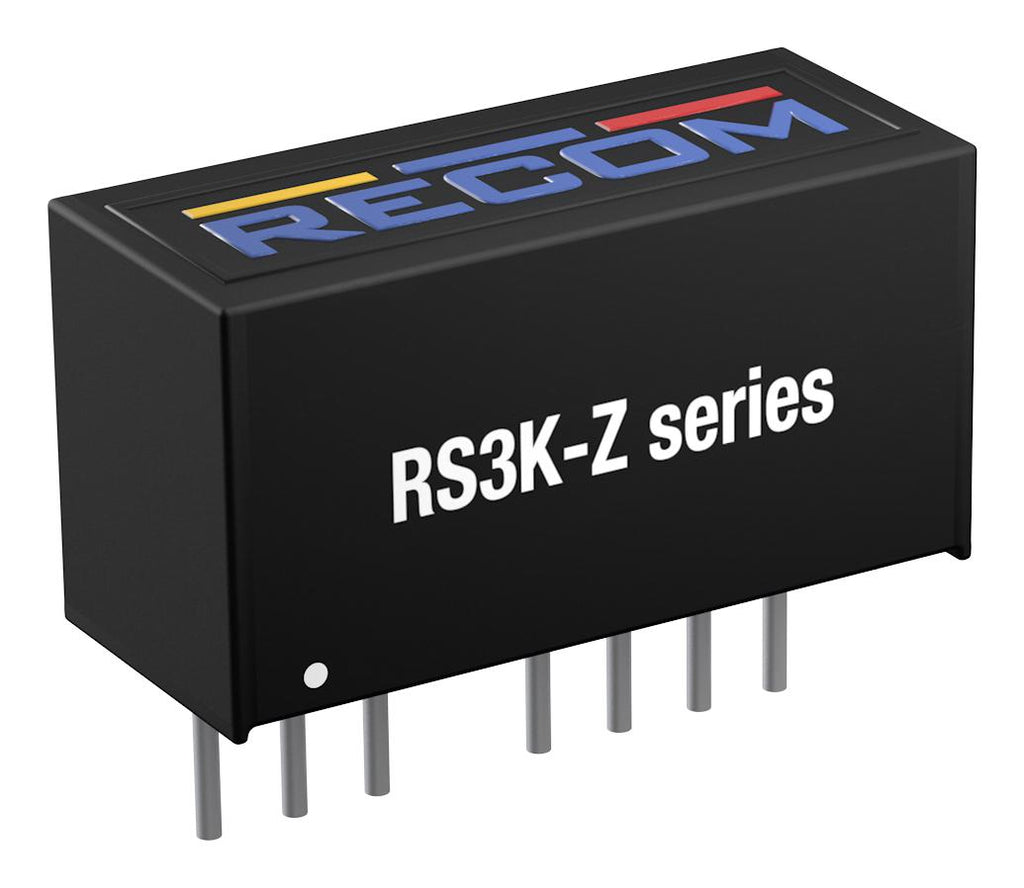

RS3K-0505D/H3 is a RS3K-Z series regulated DC/DC converter in SIP8 package. The RS3K-Z is also equipped with an ON/OFF control, allowing for quick and easy power management. High accuracy and tight line and load regulation ensure stable operation even under challenging conditions. It is also equipped with continuous short circuit protection and undervoltage lockout (UVLO) for added safety. The RS3K-Z is an excellent choice for industrial applications.
- Input voltage ranges from 4.5 to 9VDC
- Nominal output voltage is ±5VDC
- 3KVDC/sec isolation
- Operating temperature range up to 105°C
- Max output current is ±300mA
- Continuous short circuit protection
- Typical efficiency is 70%
- Max capacitive load is 2500μF
- Dimensions (LxWxH) is 21.84mm x 9.14mm x 11.17mm
- IEC/EN/UL 62368-1 certification and 3 year warranty
Product details
| Power Supply Applications |
ITE, Industrial & Household |
| Input Ratio |
2:1 |
| No. of Outputs |
2 Output |
| Output Current - Output 1 |
300mA |
| Output Current - Output 2 |
-300mA |
| Isolation Voltage |
3kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
11.1mm |
| Input Voltage DC Min |
4.5VDC |
| Product Range |
RS3K-Z Series |
| DC / DC Converter Type |
SIP |
| Output Power Max |
3W |
| Output Voltage - Output 1 |
5VDC |
| Output Voltage - Output 2 |
-5VDC |
| Output Regulation |
Regulated |
| Input Voltage DC Nom |
5V |
| Width |
9.2mm |
| Depth |
21.8mm |
| Input Voltage DC Max |
9VDC |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
RECOM POWER |
| Part Number |
RS3K-0505D/H3 |
| Quantity |
Each |
