Product Overview

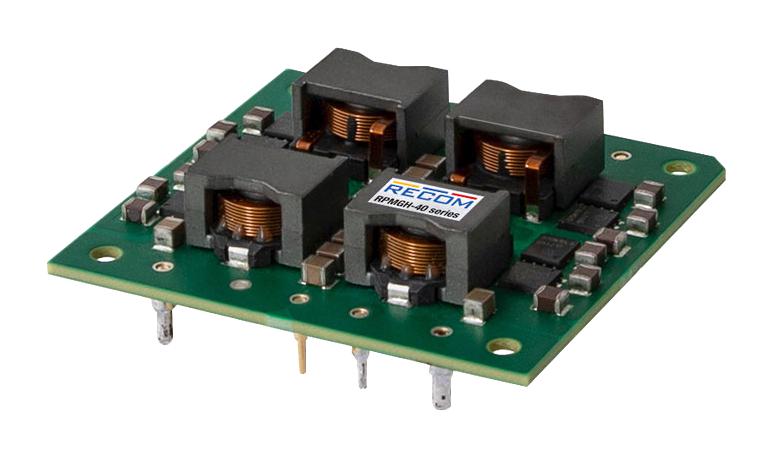

RPMGH12-40 is a RPMGE-40 series non-isolated DC/DC converter in a half-brick package. The high efficiency and thermal design of the product mean that minimal derating is required, even at high temperatures. The device is exceptionally suited for 24V, 28V, and 48V power rails as a point of load solution in a distributed power architecture. Trimmable output, remote sense, and remote control features as well as undervoltage lockout, overload, over-temperature, and short circuit protections are standard. Application includes industrial and automation, building and home automation, energy, datacom, telecom, and infrastructure.
- 40A non isolated half brick
- Wide input range from 18 to 75VDC (CIN= 470µF + COUT= 2000µF), 12V output voltage
- 40A max output current, 95% typ efficiency
- Standard eighth brick format, high efficiency
- Operating temperature derates to 120°C, 3 years warranty
- Internal operating frequency range from 400KHz to 440KHz
- FR4, (UL94 V-0) PCB type material
- Operating temperature range from -40°C to +120°C
- Dimension is (L x W x H) 57.65 x 60.96 x 14.98mm
Product details
| Power Supply Applications |
ITE, Industrial & Household |
| Output Power Max |
480W |
| Output Voltage Max |
24V |
| DC / DC Converter Output Type |
Adjustable |
| Input Voltage DC Max |
75VDC |
| Depth |
57.9mm |
| Product Range |
RPMGH-40 Series |
| DC / DC Converter Type |
Half Brick |
| Output Voltage Min |
8V |
| Output Current Max |
40A |
| Input Voltage DC Min |
18VDC |
| Height |
15mm |
| Width |
61mm |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
RECOM POWER |
| Part Number |
RPMGH12-40 |
| Quantity |
Each |
| Technical Data Sheet (824.66KB) EN |
View or download |
