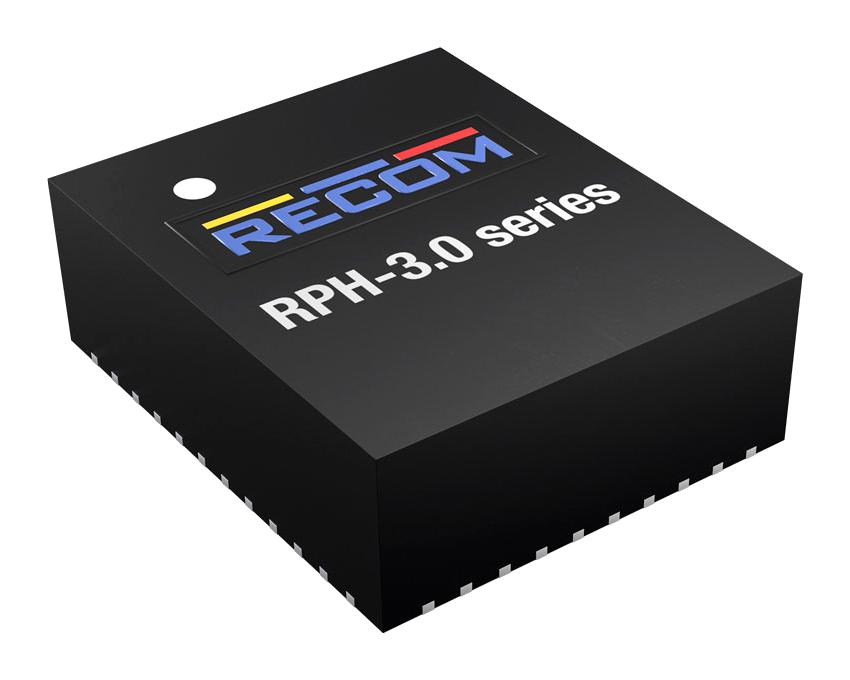

RECOM POWER RPH-3.0-T Non Isolated POL DC/DC Converter, ITE, Industrial & Household, Module, 15 W, 1 V, 15 V, 3 A

RPH-3.0-T is a RPH-3.0 series cutting-edge non-isolated step-down power module. It is a compact and versatile solution designed to meet challenging power conversion needs with efficiency and precision. This buck regulator power module is equipped with an integrated shielded inductor, offering a host of features to ensure optimal performance and reliability. With a maximum input voltage of 55V, this module provides a robust solution for various applications, ensuring stable and efficient voltage regulation. Safety is a top priority, and this module comes equipped with short circuit, overcurrent, overvoltage, and undervoltage lockout features, ensuring the longevity and protection of connected device. The use of Flip-Chip technology enhances thermal management, ensuring that the module operates efficiently even in demanding conditions. Application includes industrial and automation, building and home automation, energy, datacom and telecom and infrastructure.

• Buck regulator power module with integrated shielded inductor
• Flip-Chip technology for improved thermal management
• Input voltage range from 4.5 to 55VDC, output volage range from 1 to 15VDC
• 3000mA max output current, 91% typ efficiency (VIN= 24VDC, VOUT= 12VDC, +25°C ambient)
• Minimum on time is 90ns typ (TAMB= 25°C), 100ns minimum off time typ (TAMB= 25°C)
• Switching frequency range from 400KHz to 640KHz (VOUT= 3.3VDC, RFREQ=100k)
• Plastic case material, 3 years warranty
• Dimension (L x W x H) is 10mm x 11.98mm x 3.98mm
• QFN package
• Operating junction temperature range from -40°C to 125°C
