Product Overview

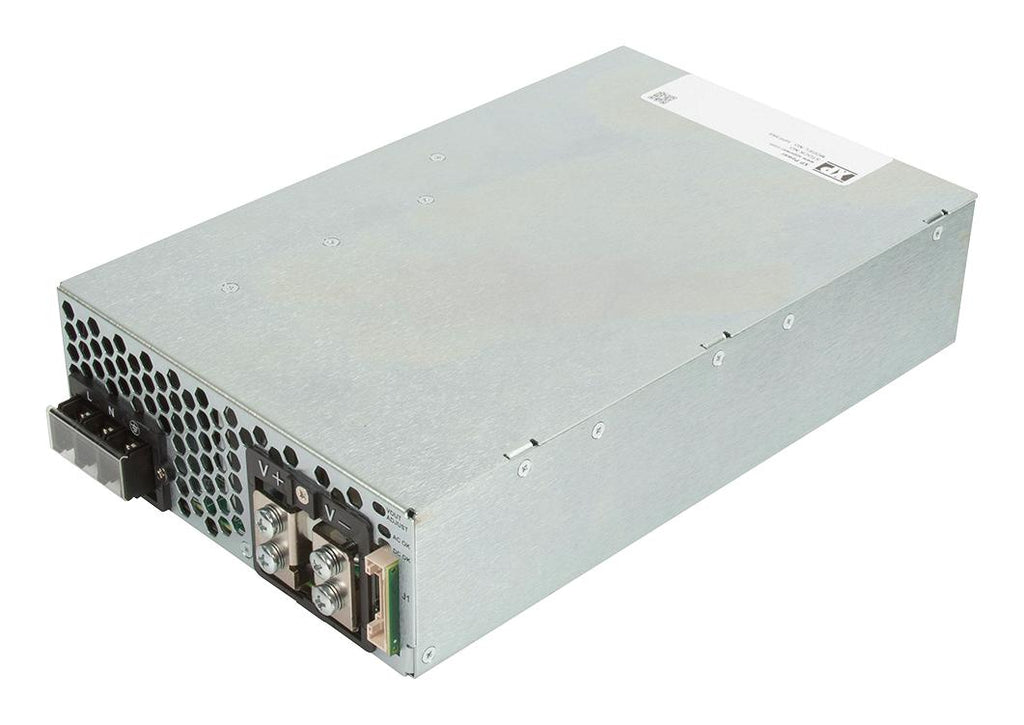

HPF3K0PS24 is a HPF3K0 series, 3kW fan cooled, AC-DC power supply. It provides a suite of sophisticated digital control and monitoring functions, which equip the product for use in systems with a distributed control architecture. Medical and information technology safety approvals, high power density and class B conducted emissions are just part of the generous feature set, supporting use in a wide variety of applications. Typical applications include healthcare, industrial electronics, semiconductor manufacturing, technology.
- Medical and information technology safety approvals
- Multiple serial data communication protocols: PMBus, CANopen, MODBUS and SCPI
- Intelligent fan speed control, parallel operation
- High efficiency, analogue and digital interfaces
- Graphical user interface, 5V/2A housekeeping supply, 3 years warranty
- 3000W max output power, 24VDC nominal output voltage1
- 125A maximum output current, 90.3% efficiency
- Input frequency is 63Hz max, switching frequency is 250KHz max (variable frequency main converter)
- Operating temperature range from -20°C +70°C
- Dimension is 279.4 x 177.8 x 63.5mm
Product details
| Power Supply Applications |
ITE, Industrial & Medical |
| Output Power Max |
3kW |
| Output Current - Output 1 |
125A |
| Output Current - Output 2 |
- |
| Output Current - Output 3 |
- |
| Output Current - Output 4 |
- |
| Power Supply Output Type |
Programmable |
| SVHC |
No SVHC (23-Jan-2024) |
| No. of Outputs |
1Outputs |
| Output Voltage - Output 1 |
24VDC |
| Output Voltage - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Voltage - Output 4 |
- |
| Input Voltage VAC |
180V AC to 264V AC |
| Product Range |
HPF3K0 Series |
Other details
| Brand |
XP POWER |
| Part Number |
HPF3K0PS24 |
| Quantity |
Each |
| Technical Data Sheet (2.62MB) EN |
View or download |
