Product Overview

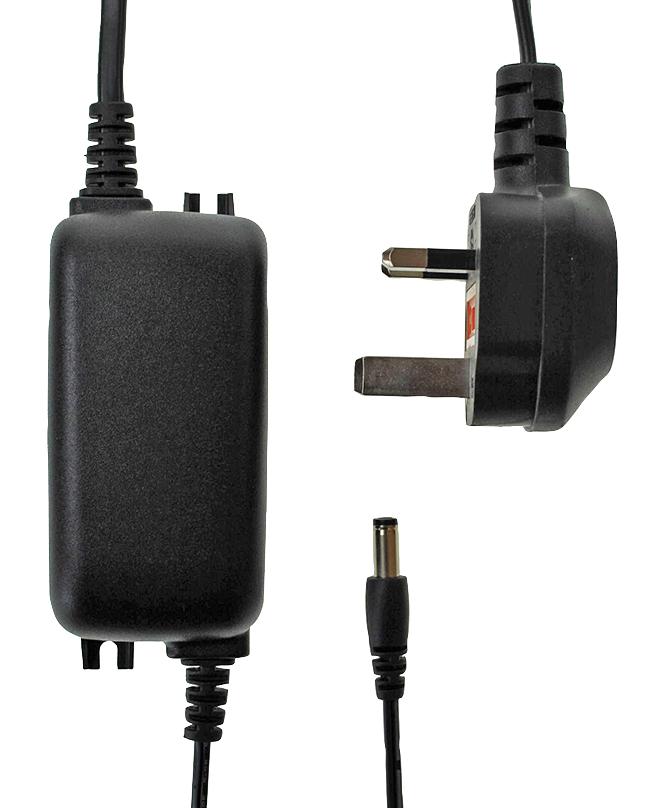

MP-SW3114LUG-B-UK-FA is an AC / DC wall mount power supply.
- Universal / full range AC input, small & compact design
- Fixed AC mains lead- UK plug fitted - can be cut off for direct wiring
- Meets latest energy efficiency legislation, safety approved
- Integral fixing lugs suitable for mounting, high reliability MTBF 50K hours
- Rated input voltage range from 100 to 240VAC, full frequency range from 47 to 63Hz
- 12VDC voltage, 2A max current, 24W power
- Over current and short circuit protections
- 1.5m DC cord, 2.1 x 5.5 x 12mm positive centre (+ve C) DC output type
- Operating temperature range from 0 to 40°C
- Case size is 106 x 49.8 x 35.09mm
Product details
| Power Supply Applications |
- |
| Output Power Max |
24W |
| Output Current - Output 1 |
2A |
| Output Current - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Product Range |
MP UK Plugtops |
| SVHC |
No SVHC (23-Jan-2024) |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
12V |
| Output Voltage - Output 2 |
- |
| Output Connector |
Barrel Plug Center Positive 2.1mm x 5.5mm x 12mm |
| Output Current - Output 3 |
- |
| Input Voltage VAC |
90V AC to 264V AC |
| Plug Type |
UK Type G |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP014093 |
| Quantity |
Each |
| Technical Data Sheet (261.09KB) EN |
View or download |
