Product Overview

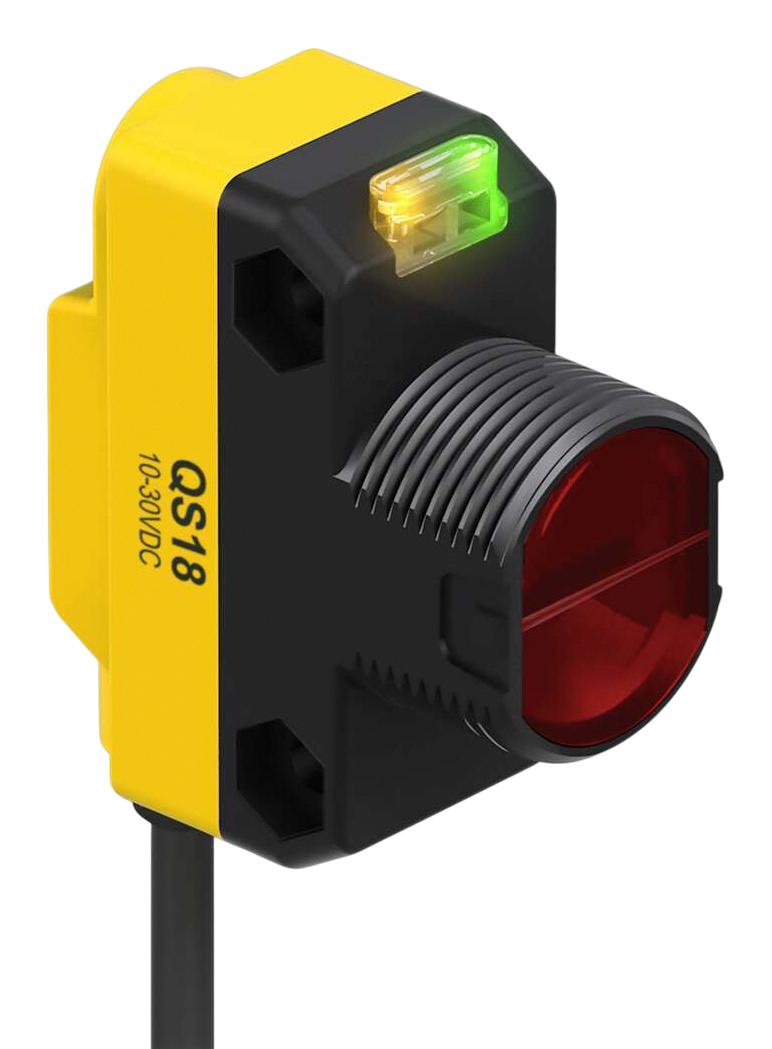

QS18VP6LLP is a polarized retroreflective laser sensor excellent for applications where high sensing power and small beam size are important. Uses a special filter to polarize the emitted light, filtering out unwanted reflections from shiny objects.
- 650nm visible red class 1 laser: 0.1 to 10m (0.33ft to 33ft)
- Narrow effective beam provides small-object detection and precise position control
- Crosstalk rejection algorithm protects against optical disturbance from adjacent sensors
- Excellent optical performance throughout sensing range, even close up
- 10V DC to 30V DC operation, with complementary (SPDT) PNP output
- Bright LED operating status indicators are visible from 360°
- Compact, rugged sealed housing, protected circuitry
- Mounting versatility – popular 18mm threaded barrel or side-mount
- Standard 4-wire 2m (6.5ft) cable
Product details
| Sensor Type |
Photoelectric Sensor |
| Sensing Method |
Polarized Retroreflective |
| Product Range |
QS18 Series |
| Supply Voltage Min |
10VDC |
| Light Source |
650nm Red Laser |
| IP Rating |
IP67 |
| Operating Temperature Max |
50°C |
| Sensing Distance Max |
10m |
| Output Type |
Digital - Complementary PNP |
| Connection Method |
2m Cable |
| Supply Voltage Max |
30VDC |
| Qualification |
- |
| Operating Temperature Min |
-10°C |
| SVHC |
No SVHC (23-Jan-2024) |
Other details
| Brand |
BANNER ENGINEERING |
| Part Number |
QS18VP6LLP |
| Quantity |
Each |
| Technical Data Sheet (82.00B) EN |
View or download |
