Product Overview

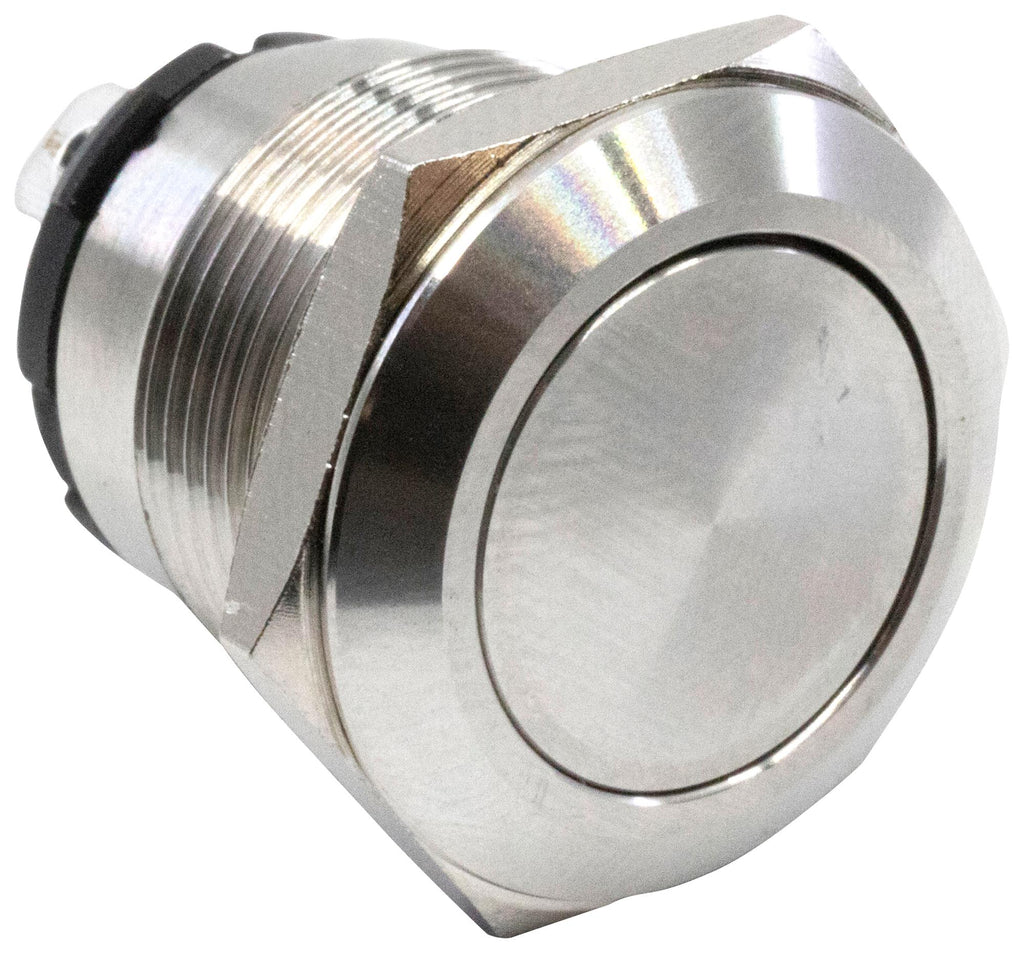

PVHC4F23SS is a PVHC4 series, anti-vandal switch. It provides durability and security in a sleek and modern package (19mm diameter panel cutout). Dependability meets visual appeal with an IP67 rating. The electrical life is an impressive 50,000 cycles, and the switch has an operating/storage temperature of -40°C to 85°C.
- Flat actuator, solder lug terminal
- 1P Off-On function, stainless steel body finish, stainless steel actuator finish
- Silver contact material, non-illuminated
- 20A, 250VAC/25A, 30VDC electrical rating
- 100Mohm at 500VDC insulation resistance, 1,500VAC dielectric strength
- 6N actuation force, 1-6mm panel thickness
Product details
| Product Range |
PVHC4 Series |
| Contact Configuration |
SPST-NO-DM |
| Pushbutton Actuator Style |
Round Flat |
| Contact Current AC Max |
20A |
| Contact Current DC Max |
25A |
| IP Rating |
IP67 |
| Switch Terminals |
Solder Lug |
| Panel Cutout (H x W) |
- |
| Panel Cutout Diameter |
19mm |
| Switch Operation |
Off-On |
| Actuator / Cap Colour |
Natural |
| Contact Voltage VAC |
250V |
| Contact Voltage VDC |
30V |
| Switch Mounting |
Panel Mount |
| Illumination Colour |
Non Illuminated |
| SVHC |
No SVHC (27-Jun-2018) |
Other details
| Brand |
E-SWITCH |
| Part Number |
PVHC4F23SS |
| Quantity |
Each |
| Technical Data Sheet (45.00B) EN |
View or download |
