Product Overview

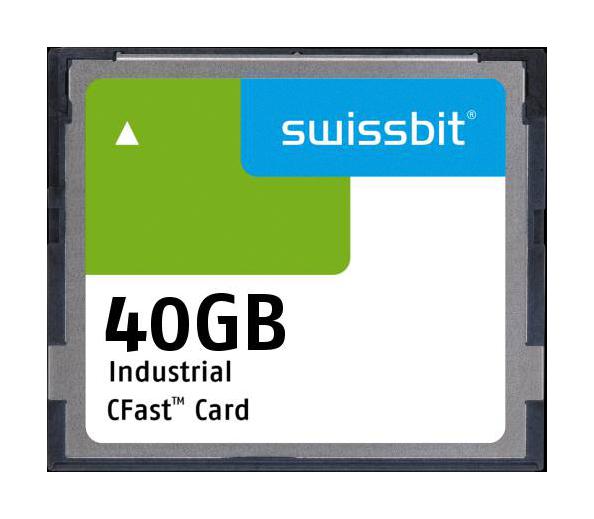

SFCA040GH1AO1TB-I-EB-21P-STD is a F-86 series, industrial CFast card.
- Dynamic and static wear levelling, 40Gb capacity, 3D PSLC flash
- Subpage mode flash translation layer (FTL)
- Optimized FW algorithms especially for high read access and long data retention applications
- Dynamic bad block remapping, write amplification reduction
- TRIM and NCQ support, ATA security feature set support, DEVSLP compatible
- Enterprise-grade self-monitoring, analysis, and reporting technology (S.M.A.R.T.)
- End-to-end (E2E) data path protection, in-field firmware update
- On-die temperature sensor, life cycle management, controlled “locked” BOM
- Swiss bit life time monitoring (SBLTM) tool and SDK
- Industrial temperature range from -40°C to 85°C
Product details
| Flash Memory Card Type |
CFast Card |
| Standard Speed Class |
- |
| Video Speed Class |
- |
| Supply Voltage Nom |
3.3V |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (23-Jan-2024) |
| Memory Capacity |
40GB |
| UHS Standard |
- |
| App Rating |
- |
| Operating Temperature Min |
-40°C |
| Product Range |
F-86 Series |
Other details
| Brand |
SWISSBIT |
| Part Number |
SFCA040GH1AO1TB-I-EB-21P-STD |
| Quantity |
Each |
| Product Change Notice (53.07KB) EN |
View or download |
| Technical Data Sheet (133.10KB) EN |
View or download |
