Product Overview

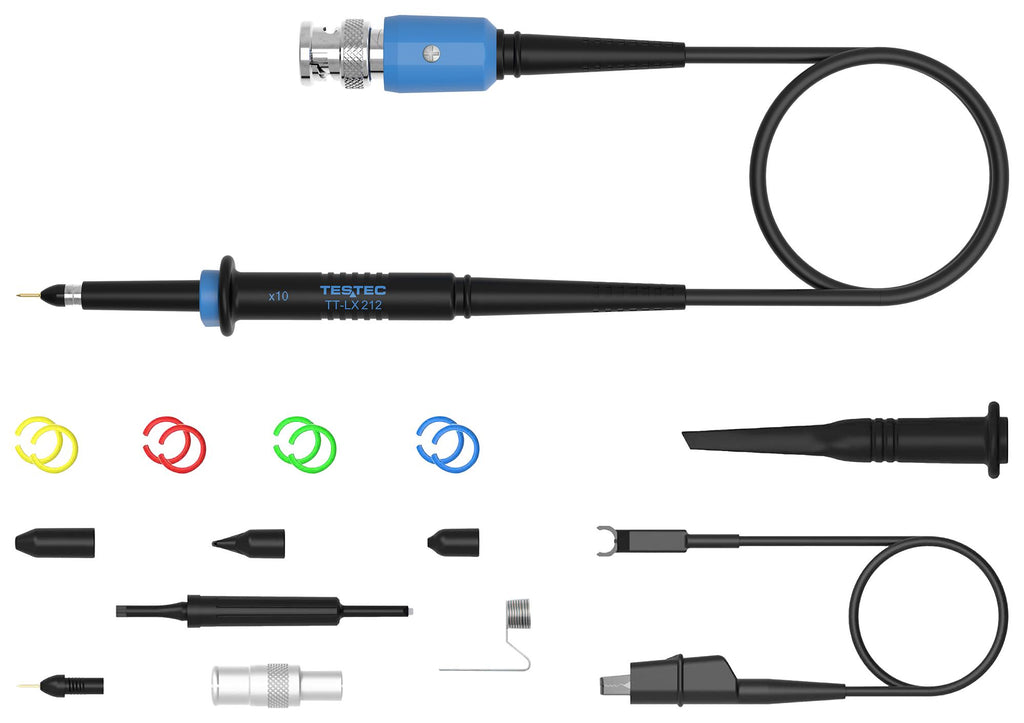

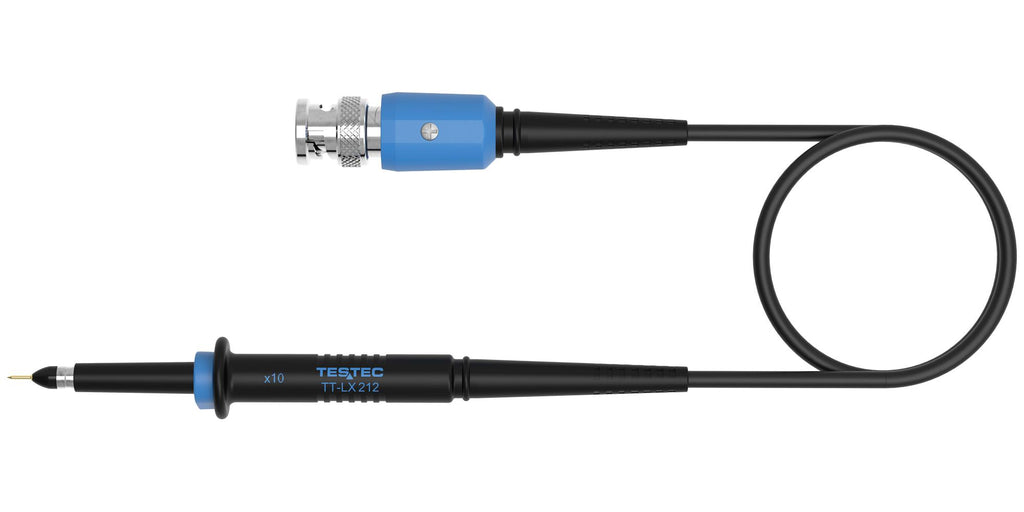

TT-LX 212 is a 150MHz bandwidth, x10 attenuation low frequency oscilloscope probe. Use only with oscilloscopes that have BNC with 1Mohminput and connected to an earth ground. Do not connect the probe reference lead to any point which is at a potential other than earth ground.
- 2.3ns rise time
- Input resistance of 10Mohm
- Input capacitance of 13pF
- Compensation range 8-25pF
- 1.2m nominal cable length
- Maximum operating temperature range from 0°C to +50°C
Product details
| Oscilloscope Probe Function |
Passive |
| Input Voltage Max |
- |
| For Use With |
Oscilloscopes |
| SVHC |
No SVHC (04-Feb-2026) |
| Bandwidth |
150MHz |
| Test Probe Attenuation |
10:1 |
| Product Range |
TT-LX Series |
Other details
| Brand |
TESTEC |
| Part Number |
TT-LX 212 |
| Quantity |
Each |
| Technical Data Sheet (824.90KB) EN |
View or download |
