Product Overview

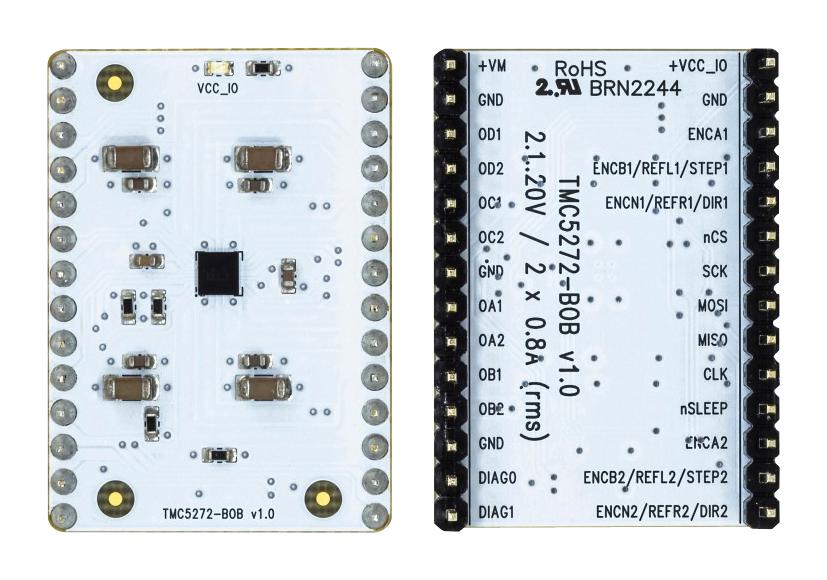

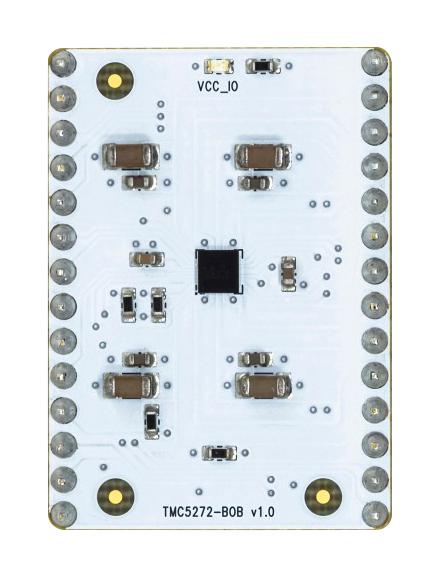

TMC5272-BOB is a breakout board for TMC5272 stepper motor driver & controller.
- Supply voltage 2.1 to 20VDC
- 2x Iphase up to 0.8ARMS
- StealthChop2 silent PWM mode
- StallGuard4 sensorless motor load detection
- TriCoder sensorless Standstill steploss detection and full step encoder
- Board width 1.0", board height 1.4"
- 2x14 pin 0.1" header rows for pins/connectors
Product details
| Accessory Type |
Breakout Board |
| Product Range |
- |
| For Use With |
Evaluation Board TMC5272 Stepper Motor Driver & Controllers |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
TRINAMIC / ANALOG DEVICES |
| Part Number |
TMC5272-BOB |
| Quantity |
Each |
| User Manual (2.75MB) EN |
View or download |
