Product Overview

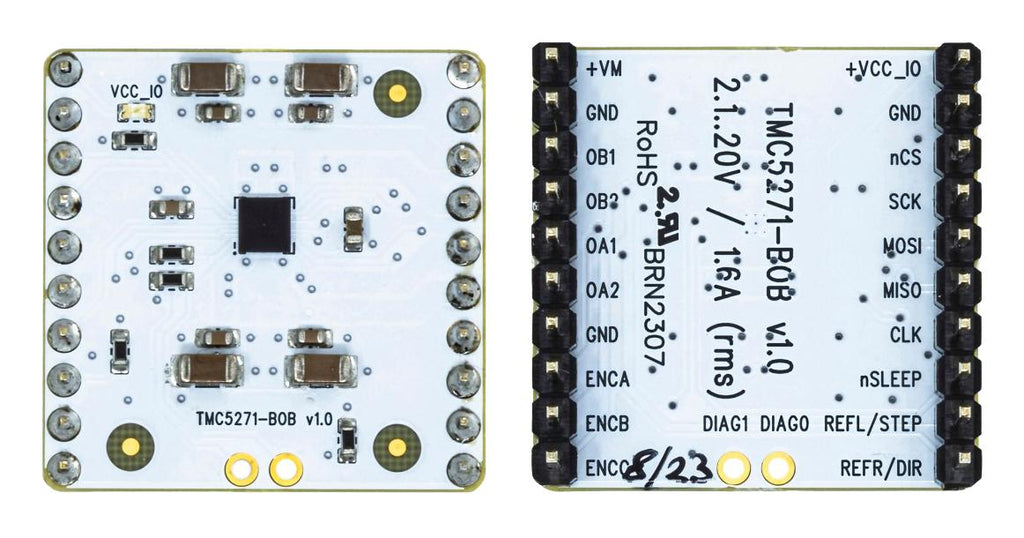

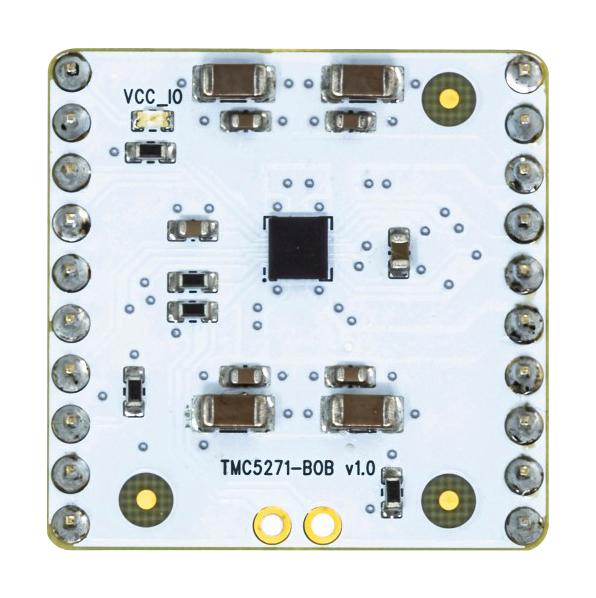

TMC5271-BOB is a breakout board for TMC5271 stepper motor driver & controller.
- Supply voltage range from 2.1V to 20V DC
- Iphase up to 1.6ARMS
- StealthChop2 silent PWM mode
- StallGuard4 Sensorless motor load detection
- TriCoder sensorless Standstill steploss detection and full step encoder
- Board width 1.0" (25.40mm), board height 1.0" (25.40mm)
- 2 x 10 pin 0.1" (2.54mm) header rows for connectors
Product details
| Accessory Type |
Breakout Board |
| Product Range |
- |
| For Use With |
Evaluation Board TMC5271 Stepper Motor Driver & Controllers |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
TRINAMIC / ANALOG DEVICES |
| Part Number |
TMC5271-BOB |
| Quantity |
Each |
| User Manual (2.22MB) EN |
View or download |
