Product Overview

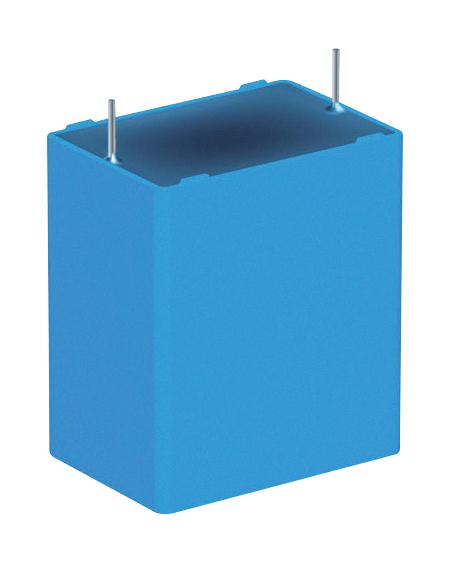

B32774H9225J000 is a MKP (Metallized polypropylene) DC link – high-density THB (B32774H) series film capacitor in a radial box case. Typical applications include frequency converters, industrial and high-end power supplies, solar inverters.
- Capacitance is 2.2µF
- AEC-Q200D compliant
- For severe ambient conditions and good self-healing properties
- High CV product, compact
- Low losses with high current capability
- High reliability and long useful life
- Over-voltage capability and extend voltage to 1600VDC
- Plastic case (UL 94 V-0) and epoxy resin sealing (UL 94 V-0)
- Climatic category (IEC 60068-1:2013): 40/105/56
- Max operating temperature of 105°C (case)
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
2.2µF |
| Typical Applications |
DC Link |
| Voltage(AC) |
- |
| Humidity Rating |
GRADE II (Test Condition A) |
| Lead Spacing |
27.5mm |
| Peak Current |
- |
| ESR |
0.0132ohm |
| Product Length |
31.5mm |
| Product Height |
21.5mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-40°C |
| Qualification |
AEC-Q200 |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 5% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
800V |
| Capacitor Terminals |
Radial Leaded |
| dv/dt Rating |
50V/µs |
| RMS Current (Irms) |
6A |
| Product Diameter |
- |
| Product Width |
12.5mm |
| Ripple Current |
- |
| Product Range |
B32774H Series |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (25-Jun-2025) |
