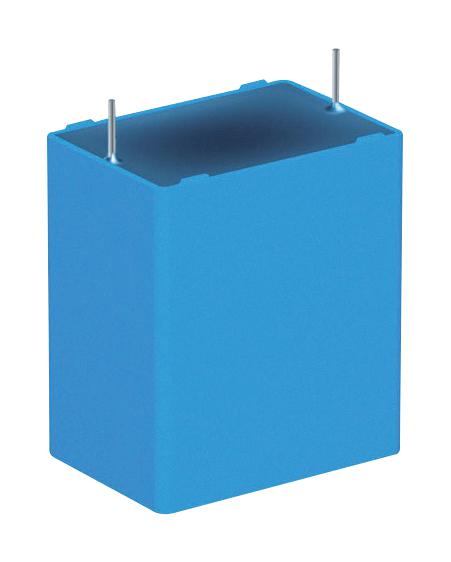

Product Overview
Also known as
B32754C2805J
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
8µF |
| Typical Applications |
AC Filter |
| Voltage(AC) |
250V |
| Humidity Rating |
GRADE III (Test Condition A) |
| Lead Spacing |
27.5mm |
| Peak Current |
- |
| ESR |
3600µohm |
| Product Length |
31.5mm |
| Product Height |
36.5mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 5% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
500V |
| Capacitor Terminals |
Radial Leaded |
| dv/dt Rating |
50V/µs |
| RMS Current (Irms) |
13A |
| Product Diameter |
- |
| Product Width |
22mm |
| Ripple Current |
- |
| Product Range |
B32754 Series |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
