ANALOG DEVICES ADSP-SC587BBCZ-4B Digital Signal Processor, 64 bit, 450MHz, 1.05 to 1.15V in, 640KB RAM, CSPBGA-529, -40 to 125°C

ADSP-SC587BBCZ-4B is a SHARC+ Dual-Core DSP with Arm Cortex-A5. The ADSP-SC58x SHARC processor is a members of the SIMD SHARC family of digital signal processors (DSPs) that feature Analog Devices, Inc., Super Harvard Architecture®. These 32bit floating-point processors are optimized for high performance audio/floating-point applications with large, on-chip, static random-access memory (SRAM), multiple internal buses that eliminate input/output (I/O) bottlenecks, and innovative digital audio interfaces (DAI). New additions to the SHARC+ core include cache enhancements and branch prediction, while maintaining instruction set compatibility to previous SHARC products. This Arm Cortex-A5 and SHARC processor is the platform of choice for applications that require programmability similar to reduced instruction set computing (RISC), multimedia support, and leading edge signal processing in one integrated package.

• 450MHz max processor instruction rate, 1 Arm cores, 2 SHARC+ cores, 640Kb SHARC+ SRAM
• Dual enhanced SHARC+ high performance floating-point cores
• Powerful DMA system, on-chip memory protection, integrated safety features
• Large on-chip L2 SRAM with ECC protection, up to 256Kb on-chip L2 ROM (512Kb)
• Cryptographic hardware accelerators, fast secure boot with IP protection
• High performance pipelined FFT/IFFT engine, FIR, IIR, HAE, SINC offload engines
• 500MHz/800 DMIPS with NEON/VFPv4-D16/Jazelle
• 32Kb L1 instruction cache/32Kb L1 data cache
• Operating temperature range from -40°C to +125°C

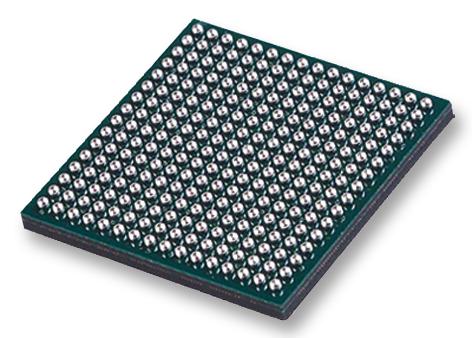

• 529-ball cspBGA package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
