Product Overview

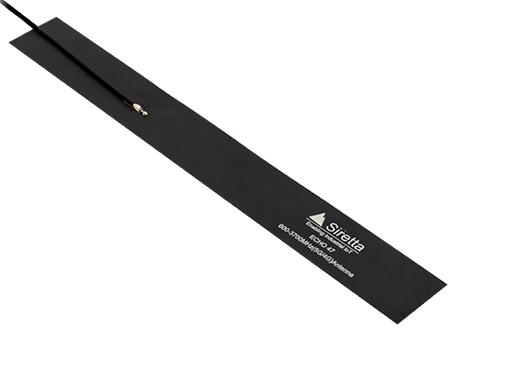

The Siretta ECHO47/0.1M/UFL/36 is a high-performance wideband flexible PCB antenna covering 600MHz to 6GHz. Designed for 5G NR, 4G LTE, NB-IoT, LoRa, Sigfox, Wi-Fi, Bluetooth and Zigbee applications, it features a ground plane independent adhesive-mount design with a 100mm cable and U.FL (I-PEX MHF1) connector for easy integration into compact wireless devices.
- Wideband flexible PCB antenna covering 600MHz to 6GHz for versatile wireless connectivity
- Supports 5G NR, 4G LTE, Cat-M, NB-IoT, Wi Fi, Bluetooth, Zigbee, LoRa and Sigfox applications
- Ground plane independent design enables flexible placement while maintaining RF performance
- Adhesive-backed mounting allows quick and secure installation inside equipment enclosures
- Supplied with 100mm 1.13mm coaxial cable and U.FL (I PEX MHF1) connector for compact embedded wireless designs
- Delivers up to 95% radiation efficiency with omnidirectional coverage for dependable signal reception and transmission
- Flexible polyimide construction can be mounted on flat or curved surfaces to maximise installation options
- Compact 168mm x 21.5mm antenna size is ideal for IoT devices, gateways, routers, telemetry systems and industrial equipment
Product details
| Antenna Type |
5G / 4G / 3G / 2G / UWB / LTE / ISM / WiFi / WLAN / Bluetooth / ZigBee / LoRa / Sigfox |
| Frequency Max |
6000MHz |
| Gain |
5.09dBi |
| Input Power |
50W |
| Antenna Polarisation |
- |
| SVHC |
No SVHC (04-Feb-2026) |
| Frequency Min |
600MHz |
| Antenna Mounting |
Adhesive / UFL / I-Pex Connector |
| VSWR |
1.88 |
| Input Impedance |
50ohm |
| Product Range |
Echo Series |
Other details
| Brand |
SIRETTA |
| Part Number |
ECHO47/0.1M/UFL/36 |
| Quantity |
Each |
