Product Overview
MICS3-ABAZ90PZ1P01 is a microScan3 safety laser scanner for the protection of very different applications from stationery to mobile and from simple to complex. The innovative safeHDDM® scanning technology makes the microScan3 extremely resistant, even to dust and ambient light, and delivers high-precision measurement data. It increases the productivity and availability of machines. The safety laser scanner offers standardized connectivity for time-saving commissioning. The microScan3, the easy handling of its Safety Designer configuration software and its diagnostic options combine user-friendly operation, innovation and very high performance.
- microScan3 Core - PROFINET safety laser scanner
- 9m protective field range
- Up to 8 fields configurable, and 8 monitoring cases
- M12 connection interface
- PROFINET PROFIsafe for seamless integration with the control system
- Very wide 275° scanning angle
- Industrial-grade IP65 aluminium housing
- Designed for industrial safety applications like AGVs, machinery, and area protection
- PL d, SIL 2, Type 3 safety rating

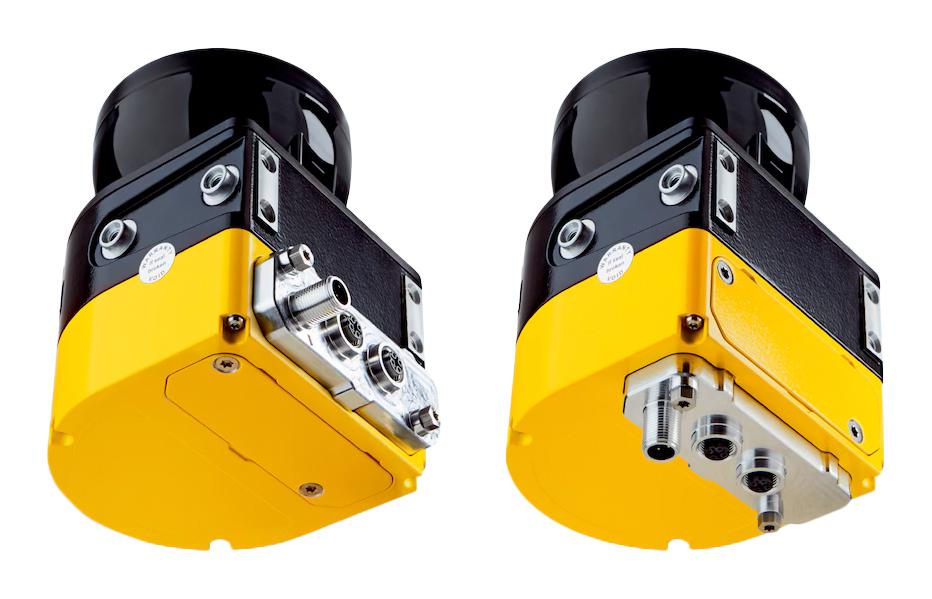

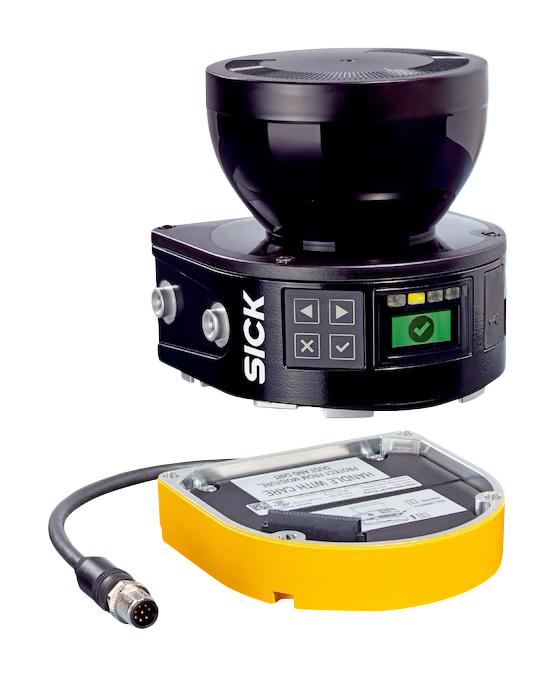

- Sensor including system plug for easier wiring and installation
Product details
| Product Range |
microScan3 Series |
| No. of Field Pairs |
8Field Pairs |
| Connection Method |
4 Pin M12 Connector |
| IP Rating |
IP65 |
| Safety Integrity Level |
SIL2 |
| Beam Angle |
275° |
| Incremental Encoder Inputs |
No |
| SVHC |
No SVHC (04-Feb-2026) |
