Description
Product Overview

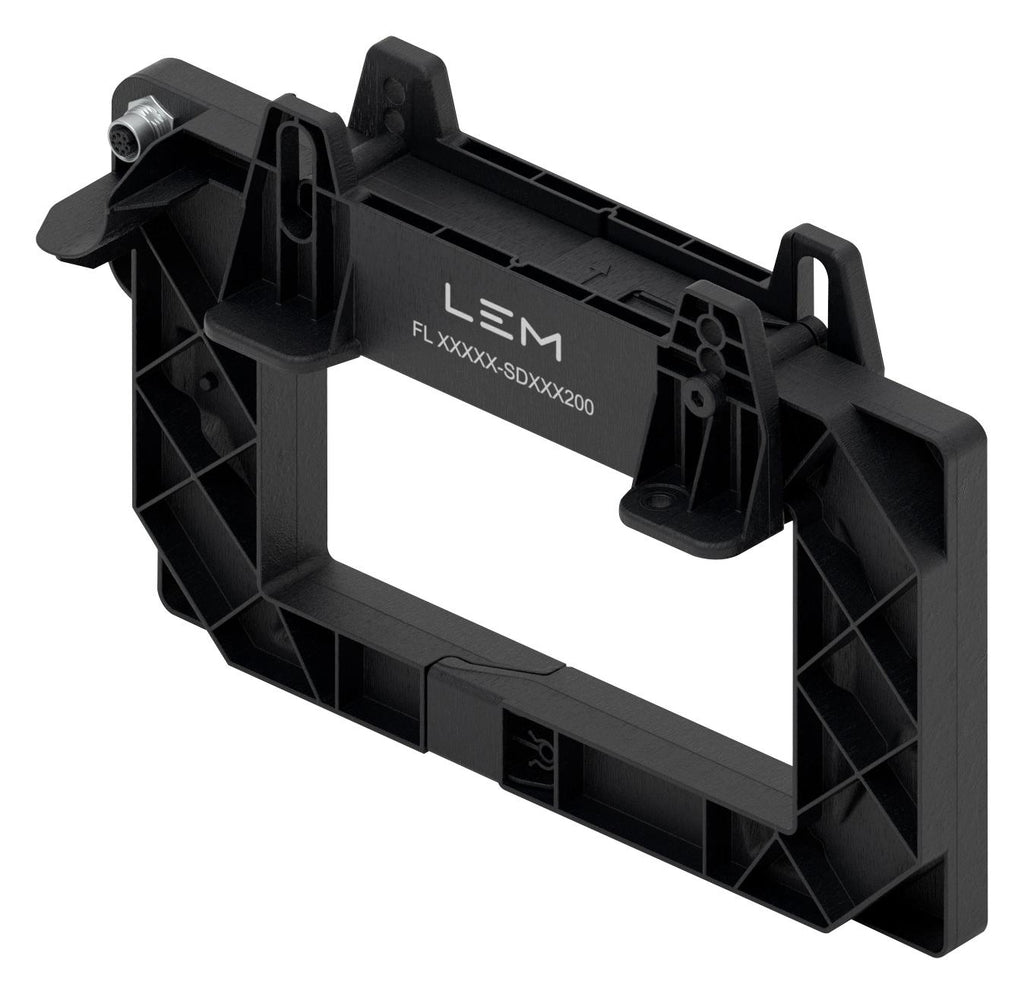

FL 20000-SDBI200 is a FL-SDxIxx series current transducer. It is suitable for the electronic measurement of current: DC, AC, pulsed, with galvanic separation between the primary and the secondary circuit. Applications include wind turbine power converters, electrolysers, and high power drives. Application domains are industrial, and trackside. Standards are IEC 62477-1: 2022, IEC 61800-5-1: 2022, IEC 62109-1: 2010, IEC 61010-1: 2010, EN 50155: 2021, IEC 61992-7-2: 2006, UL 61010-1: 3ED 2022.
- 20000A IPN range, Bi-polar output type, industrial insulation routine tests
- 200mm aperture width
- Hall effect open loop coreless integral current transducer
- Instantaneous 4-20mA current output, power supply range from 10 to 28V (TA = 25°C)
- Primary nominal current is 12000A typ (TA = 25°C, UC = +24V, RM = 100 ohm)
- Galvanic separation between primary and secondary circuit, factory calibrated
- Wide measurement range, no magnetic offset
- Low consumption and low losses, wide range of rectangular busbar dimensions
- Light weight design, M12 field connector
- Ambient operating temperature range from -40 to +85°C
Notes
Must be used in limited-energy secondary circuits SELV according to IEC 61010-1, in electric/electronic equipment wrt applicable standards and safety requirements in accordance with manufacturer’s operating specifications.
Product details
| Sensor Output Type | Current |
| Supply Voltage Range | 10V to 28V |
| Measured Current | AC / DC / Pulsed |
| Accuracy | ± 0.15% |
| Current Measuring Range AC | -30kA to 30kA |
| Secondary Signal Type | 4mA to 20mA |
| Operating Temperature Min | -40°C |
| Product Range | FL-SDxIxx Series |
| Supply Voltage DC Min | 12V |
| Supply Voltage DC Max | 24V |
| Current Measuring Range DC | -30kA to 30kA |
| Current Sensor Technology | Open Loop Hall Effect |
| Primary Current | 20kA |
| Sensor Mounting | Bracket |
| Operating Temperature Max | 85°C |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | LEM |
| Part Number | FL 20000-SDBI200 |
| Quantity | Each |
| Technical Data Sheet (1.59MB) EN | View or download |
