Product Overview

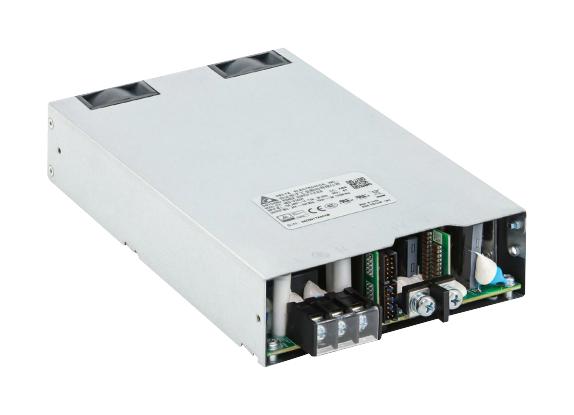

MEB-1K2A48T ABA is a MEB-1K2A series enclosed delta medical / industrial AC-DC power supply. It includes overvoltage, overload, over current, over temperature, short circuit protection. Certified by IEC60601-1 2nd edition, IEC60601-1 3rd edition + A1, TUV EN60601-1:2006/A11/A12, UL60601-1+CAN/CSA 60601-1: (Ed.3.2005), IEC 62368-1 CB report, UL 62368-1+CAN/CSA 62368-1.
- Input voltage range from 85 to 264VAC, output voltage is 48VDC
- Output current is 0-25A, typical full load efficiency is 91.5% at 115VAC/60Hz, 94% at 230VAC/50Hz
- Power factor is <gt/> 0.95 at rated load, standby power 5V / 2A (no minimum load required)
- Up to 19.1W/inch³ power density, full power from 90V to 264V, full power up to 50°C ambient
- 2 x MOPP isolation, suited for type BF medical products, up to 500 KHrs MTBF, 5V/2A standby output
- Current sharing, conformal coating, class B conducted and radiated EMI, terminal inlet type
- Analog and digital voltage trimming, PMBus Ver 1.3 supported, intelligent fan speed control
- M4 screw for PSU installation improved output connector structure
Product details
| Power Supply Applications |
ITE & Medical |
| Output Power Max |
1.2kW |
| Output Current - Output 1 |
25A |
| Output Current - Output 2 |
- |
| Output Current - Output 3 |
- |
| Output Current - Output 4 |
- |
| Power Supply Output Type |
Fixed |
| SVHC |
To Be Advised |
| No. of Outputs |
1Outputs |
| Output Voltage - Output 1 |
48V |
| Output Voltage - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Voltage - Output 4 |
- |
| Input Voltage VAC |
85V AC to 264V AC |
| Product Range |
MEB-1K2A Series |
Other details
| Brand |
DELTA ELECTRONICS |
| Part Number |
MEB-1K2A48T ABA |
| Quantity |
Each |
| Technical Data Sheet (1.58MB) EN |
View or download |
