Product Overview

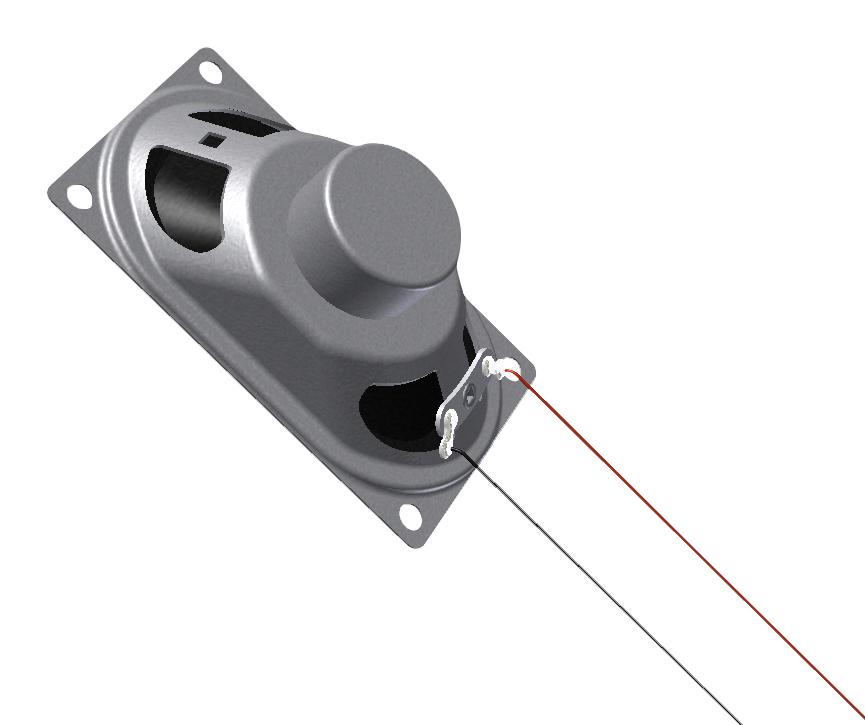

PUI AUDIO AS07108PO-LW152-WR-R Speaker, 20kHz to 100Hz, 8 ohm, 86dB, 5W, Oval with Rectangular Frame, Panel Mount
Product details
| Driver Type |
General Purpose |
| Power Rating Nom |
3W |
| Resonant Frequency |
250Hz |
| Speaker Shape |
Oval with Rectangular Frame |
| Frequency Response Min |
100Hz |
| Product Range |
- |
| Power Rating Max |
5W |
| External Depth - Metric |
25mm |
| External Depth - Imperial |
0.99" |
| Impedance |
8ohm |
| External Width - Metric |
41mm |
| Sound Pressure Level (SPL) |
86dB |
| External Width - Imperial |
1.62" |
| Frequency Response Max |
20kHz |
| Speaker Mounting |
Panel Mount |
| External Length - Metric |
71mm |
| External Length - Imperial |
2.8" |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
PUI AUDIO |
| Part Number |
AS07108PO-LW152-WR-R |
| Quantity |
Each |
| Technical Data Sheet (351.57KB) EN |
View or download |
