Product Overview

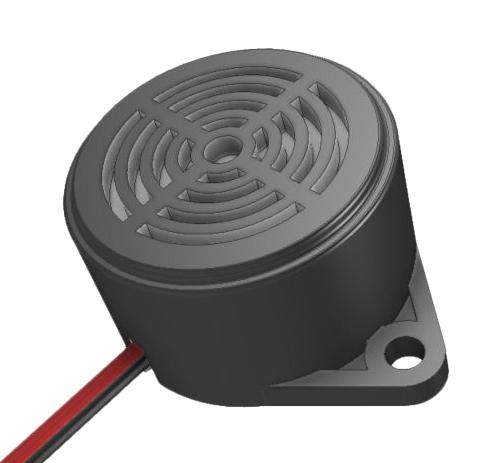

PUI AUDIO AI-2604-TF-LW120-12V Audio Indicator, Continuous, 79 dBA, 400 Hz, 8 VDC to 15 VDC, Flanged
Product details
| Transducer Function |
Audio Indicator |
| Tones |
Continuous |
| Resonant Frequency |
400Hz |
| Current Rating |
50mA |
| Capacitance |
- |
| Lead Wire |
26AWG |
| Housing Material |
ABS (Acrylonitrile Butadiene Styrene) |
| Operating Temperature Min |
-20°C |
| Product Range |
- |
| Supply Voltage Min |
0 |
| Supply Voltage Max |
15VDC |
| Sound Pressure Level (SPL) |
79dBA |
| Drive Circuit |
- |
| Transducer Mounting |
Flanged |
| IP Rating |
- |
| Operating Voltage Range |
8VDC to 15VDC |
| Operating Temperature Max |
60°C |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
PUI AUDIO |
| Part Number |
AI-2604-TF-LW120-12V |
| Quantity |
Each |
| Technical Data Sheet (581.59KB) EN |
View or download |
