Product Overview

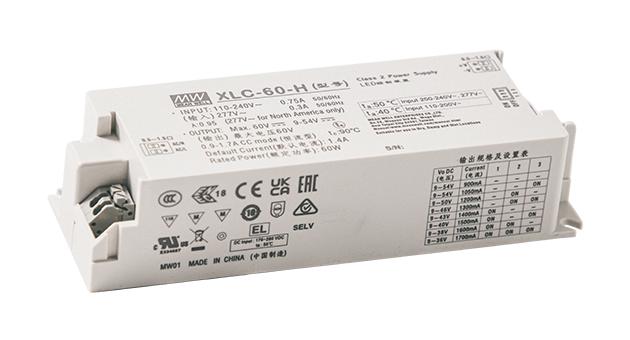

XLC-60-12-DA2 is an XLC-60 series 60W constant power and constant voltage output LED driver. XLC-60 is designed based on the latest safety regulations with 3 in 1 and DALI-2 dimming. XLC-60 can also be adjusted for brightness with a push button as a simple way dimming, so it provides more flexibility for LED lighting application. Typical applications include recessed light, downlight, panel light, commercial lighting, decorative lighting, LED strip lighting and DALI digital lighting.
- Constant voltage mode output of 12V and 5A default current
- Voltage range from 110 to 305VAC (155 to 400VDC) and 47 to 63Hz frequency range
- Plastic housing with class װ and PFC design
- Meet UL8750 Class 2 / Class P power unit
- Flicker free, complying with CE ErP directive
- Stand by power consumption <lt/>0.5W
- Meet emergency lighting (EL) application
- Minimum dimming level 0.1% (DALI-2DT6)
- 5 years warranty
- Without strain-relief (built-in casing type )
Product details
| Power Supply Applications |
LED Lighting |
| Output Voltage Max |
12VDC |
| LED Driver Mode |
Constant Voltage |
| Input Voltage Max |
305V |
| SVHC |
No SVHC (04-Feb-2026) |
| Output Power Max |
60W |
| Output Current |
5A |
| Input Voltage Min |
110V |
| Product Range |
XLC-60 Series |
Other details
| Brand |
MEAN WELL |
| Part Number |
XLC-60-12-DA2 |
| Quantity |
Each |
| Technical Data Sheet (1.05MB) EN |
View or download |
