Product Overview

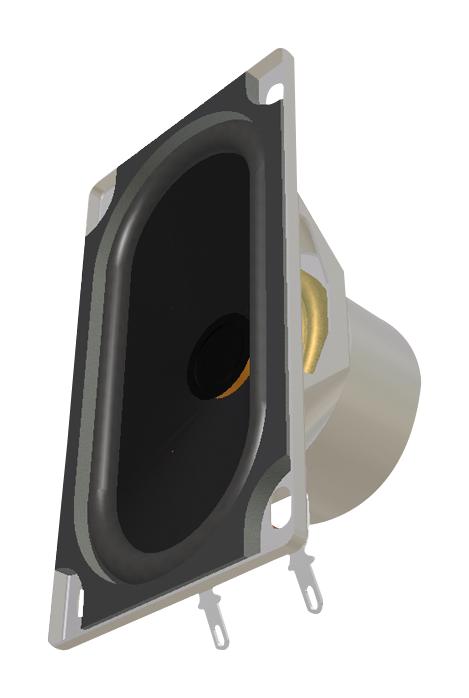

PUI AUDIO AS09008PO-11-WR-R Speaker, 180 Hz to 10 kHz, 8 ohm, 8 W, 85 dB, Oval with Rectangular Frame, Panel Mount
Product details
| Driver Type |
General Purpose |
| External Width - Metric |
50mm |
| Resonant Frequency |
180Hz |
| Speaker Shape |
Oval with Rectangular Frame |
| External Width - Imperial |
1.97" |
| Frequency Response Min |
180Hz |
| Temperature Grade |
Standard |
| Product Range |
- |
| Power Rating Max |
8W |
| External Depth - Metric |
38.5mm |
| External Depth - Imperial |
0 |
| Impedance |
8ohm |
| Power Rating Nom |
5W |
| Sound Pressure Level (SPL) |
85dB |
| Product Dimensions |
90mm x 50mm x 38.5mm |
| Frequency Range |
180Hz to 10kHz |
| Frequency Response Max |
10kHz |
| IP Rating |
- |
| Speaker Mounting |
Panel Mount |
| External Length - Metric |
90mm |
| External Length - Imperial |
0 |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
PUI AUDIO |
| Part Number |
AS09008PO-11-WR-R |
| Quantity |
Each |
| Technical Data Sheet (1.04MB) EN |
View or download |
